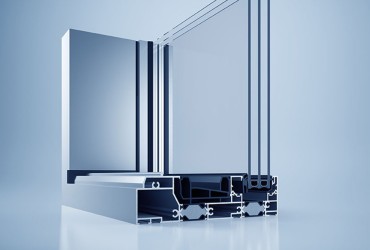

heroal S 77

Versatile, modern lifting-sliding system

Stay flexible with the lifting-sliding system heroal S 77. The modular aluminium profile system offers versatile design options. Choose from two different face widths for the sashes, two- or three-track variants with up to six movable sashes, and a wide range of colours and surface looks. These features make heroal S 77 also suitable for generously planned openings leading to patios, balconies and conservatories. The lifting-sliding door heroal S 77 meets all current energetic requirements and offers maximum convenience thanks to its flush threshold, as well as burglary resistance (resistance class RC2). As all sliding and lifting-sliding doors by heroal, heroal S 77 is also available as a barrier-free version.

  • Modular profile system
  • Various opening variants
  • Thermal insulation value UW ≥ 1.0 W/m2K

    Product Details

  • Prospects

  • Dimensions & drawings

    Visible profile width [mm]

    Leaf profile

    System properties

    Glass filling strength [mm]
    Max. leaf weight [kg]
    150 - 400
    Max. leaf heights [mm]

    Sectional Drawings

  • Performance characteristics

    RC 2 Resistance to burglary
    9A Resistance to driving rain
    > 1,0* Heat insulation (Uw in W/m2K) / Profile width [mm]
    > 2,8 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    1 Operating forces
    4 Air permeability
    1-3 Soundproofing class
    C3/B3 Wind resistance

    * Uw value in accordance with DIN EN 12567-1; calculated using an element size 3,500 x 2,180 mm.
