heroal S 42

Lightweigt, functional sliding system

Lightweight, versatile and functional – thanks to its sophisticated design, the aluminium sliding door heroal S 42 meets high demands when it comes to design, sustainability and efficiency. This filigree sliding door offers an extremely wide range of applications, thanks to the versatile opening types (two- and three-track with up to six movable sliding sashes). Yet another architectural highlight is the aluminium sliding door heroal S 42 with a 90° corner, available as internal or external corner. As all sliding and lifting-sliding doors by heroal, heroal S 42 is also available as a barrier-free version.

Slim sash profiles
Various opening variants
90° corners as internal or external corners

heroal S 42 - brochure 5.46 MB System request >

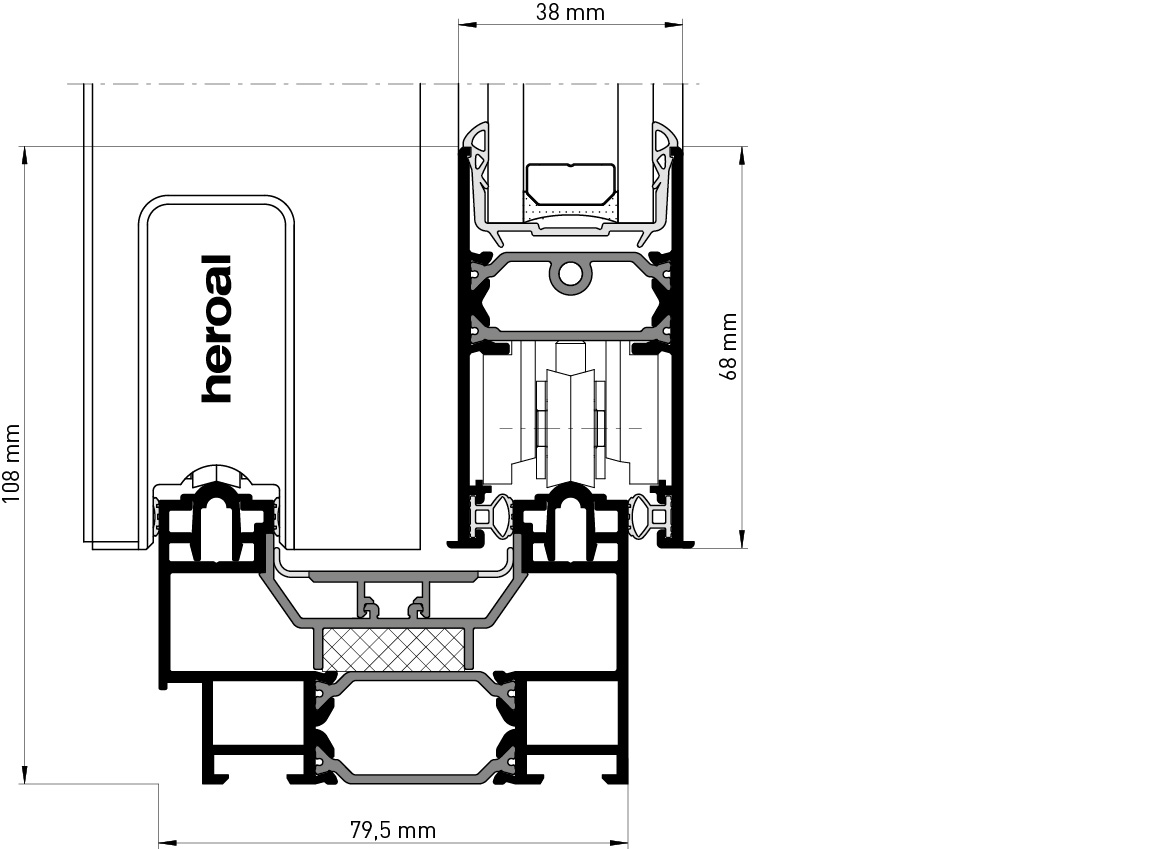

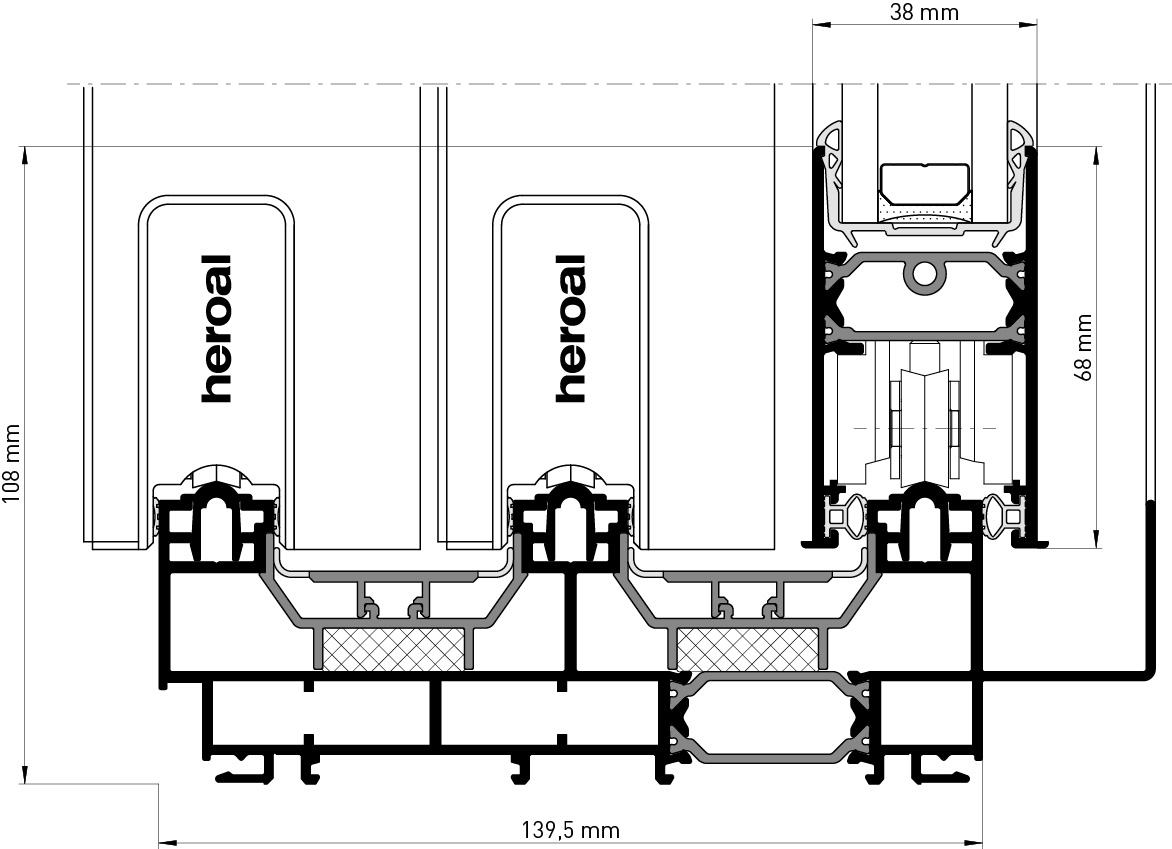

System dimensions

Visible profile width [mm]

Leaf profile: 68 / 72

System properties

Glass filling strength [mm]: 28
Max. leaf weight [kg]: 160
Max. leaf heights [mm]: 2.600

Performance characteristics

4 Air permeability

>1,3* Heat insulation (U_w in W/m²K) / Profile width [mm]

8A Resistance to driving rain

C3/B4 Wind resistance

1-3 Soundproofing class

1 Operating forces
