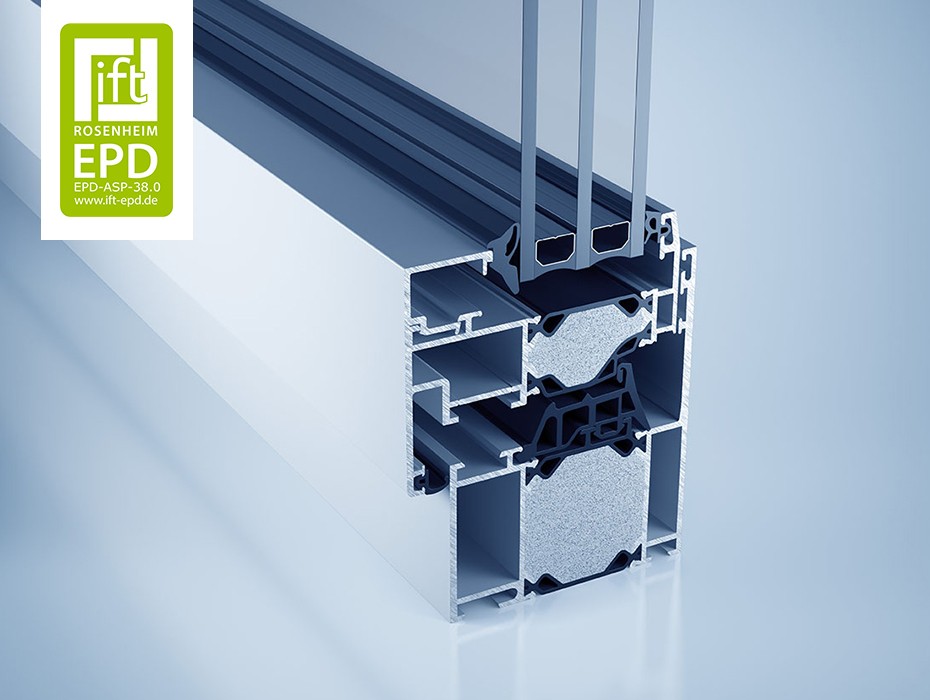

heroal W 72 i

Block window system

The heroal W 72 i window system combines architectural design with filigree face widths. heroal W 72 i offers maximum transparency, thermal insulation and elegant design without visible casements and glass strips. This block window system can be used in a variety of ways, including as a facade insert unit. In combination with concealed system fittings it makes for an elegant design.

heroal W 72 - brochure 2.15 MB BIM data heroal W 72 Contact us >

System dimensions

Profile depth [mm]

Frame profile: 72
Leaf profile: 72
Bar profile: 76,5 / 79

Visible profile width [mm]

Frame profile: 70 - 120
Leaf profile: verdeckt
Sash/frame combination: 77 / 81
Bar profile: 114 - 244

Casement profi e variations

Push rod fitting groove [SBN]: •
Plastic fitting groove [KBN]: •

System properties

Glass filling strength [mm]: 48
Max. leaf weight [kg]: 300
Max. leaf heights [mm]: 2.400
Max. leaf widths [mm]: 1.200

Performance characteristics

1,5/97 Thermal insulation [U_f in W/m²K] / Profile width [mm]

4 Air permeability

> 0,83* Heat insulation (U_w in W/m²K) / Profile width [mm]

9A Resistance to driving rain

C5/B5 Wind resistance

1-5 Soundproofing class

RC 2 Resistance to burglary

1 Operating forces

5 Impact resistance

4 Mechanical resistance

✓ Load-bearing capacity of safety equipment

2 Continuous function
