Non-insulated profile systems

Design residential areas or highly frequented passage areas in offices and public places by heroal non-insulated profile systems. Available products with non-insulated systems range from sliding doors through windows to fire protection doors.

Profile systems, non-insulated

Profile systems for accentuations in indoor areas

Non-insulated profile systems by heroal combine flexible design with a wide variety of functionalities. The places of installation range from residential areas to highly frequented passage areas in offices, schools or public places, such as an indoor pool. The wide range of applications also offers maximum freedom of design for planners and architects. Elements such as partitions walls, sliding elements or smoke and fire protection systems create light-flooded partitions of space or protected zones.

Product characteristics of non-insulated heroal profile systems

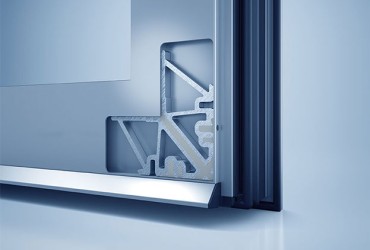

Connector technology

Connector technology

The innovative injection of sealants ensures an optimal sealing of mitre joints and T-connections with low material usage. The guided distribution of sealant and innovative connector geometries make an efficient and time-saving manufacture possible. To meet international standards and requirements, corner angles that can be nailed or compressed as well as screwable and clampable corner connectors are available. Optimal heat insulation is ensured by T-connectors equipped with closed-cell foamed rubber used for sealing rebate areas.
Certified sustainability

Certified sustainability

heroal pays special attention to the sustainable and certified manufacture of aluminium composite profiles. The smart material usage starts with the manufacture of the profile semi-facings. Following the closed loop aluminium recycling principle A|U|F, recovered materials are returned to the production cycle. Eco-friendly production is also a priority when it comes to profile coating. Excessive powder quantities are collected and re-used in a state-of-the-art powder coating facility. Hence, both fabricators and partners also benefit from heroal’s commitment to sustainability.
Surface coating

Surface coating

heroal surface coating opens up design options that could not be realised with other materials. Coating variants for every application are available. Above all, the focus is on design and colour variety as well as surface coating durability. heroal coating technologies offer numerous options for design. Different gloss rates and surface designs, such as concrete or wood, are available. The close cooperation with Les Couleurs® Le Corbusier gives heroal access to an exclusive, harmonious range of colours. All surface coatings are characterized by the typical heroal quality and support the long lifespan of heroal systems.

Non-insulated heroal profile systems at a glance

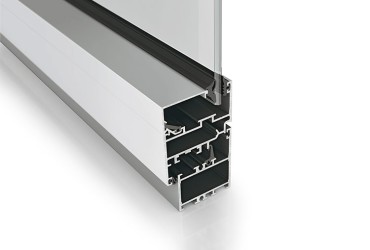

heroal W 50 C

Economical dividing wall systems in indoor areas

heroal W 50 C is a universal profile system for dividing elements and wall systems, particularly in indoor areas. It is characterised by narrow view widths and can be used as either a flush window or fixed glazing.

To product details >

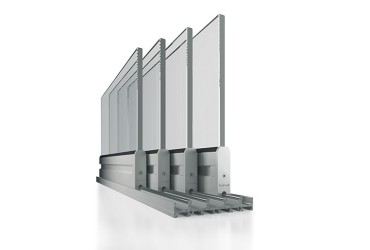

heroal S 20 C

Sliding door system with frameless sashes

The non-insulated aluminium sliding door system heroal S 20 C makes it possible to use covered outdoor areas regardless of wind and weather. Frame connectors, adjustable slide mechanisms and glass clampings ensure a fast and easy manufacture. The sliding door system heroal S 20 C offers a variety of opening types. The frameless sashes and a accessible threshold lend this sliding door a very elegant design and maximum transparency. It is very comfortable to use thanks to slide dampers, sash carriers and durable stainless steel rails. Cleaning is made easy by an integrated dirt drain.

To product details >

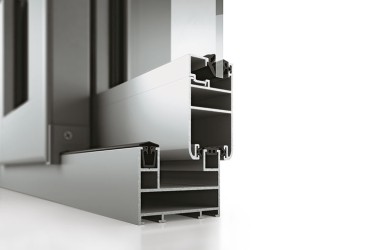

heroal S 50 C

System solutions for non-insulated sliding elements

heroal S 50 C is an attractive solution for sliding elements and doors, particularly in indoor areas. 2 and 3-track sliding elements with up to 6 moveable casements are possible in narrow view widths.

To product details >

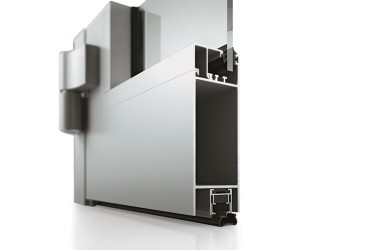

heroal D 50 C

Efficient solutions for door and dividing elements for indoor use

heroal D 50 C enables a variety of opening types for attractive, highly functional door and dividing elements and dividing wall systems, particularly in indoor areas. Wide range of designs provided by variable, flush exterior views.

To product details >

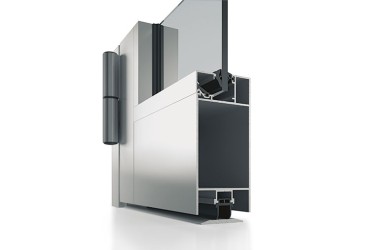

heroal D 65 C SP

Door system solution for heavily used passageways with smoke protection required

There are various different ways of combining smoke protection elements in indoor areas: with the heroal D 65 C SP profile system, it is possible to install single- and double-casement smoke control doors that have been tested to DIN 18095 RS 1/RS 2 and EN 1634-3 standards. Central glazing or an automatic hinged door drive system for smoke control doors are also available as an option. Versions with fixed glazing or dividing wall systems are also possible in a variety of designs. Clampable hinges enable quick and cost-effective production.

To product details >

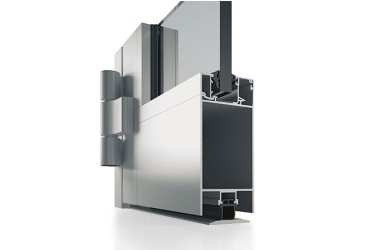

heroal D 65 C FP

System solutions for E30/EW30 fire doors and fire-resistant glazing

The heroal D 65 C FP profile system's single- and double-casement fire doors, which have been tested to EN 1364-1 and 1634-1 standard and approved in accordance with the national classification report, offer various design options including side sections and transom windows. The profiles of the heroal D 65 C system provide a basis that can be extended to create fire protection barriers with just a few additional components. Versions with nonbearing protective wall constructions are also possible in a variety of designs.

To product details >

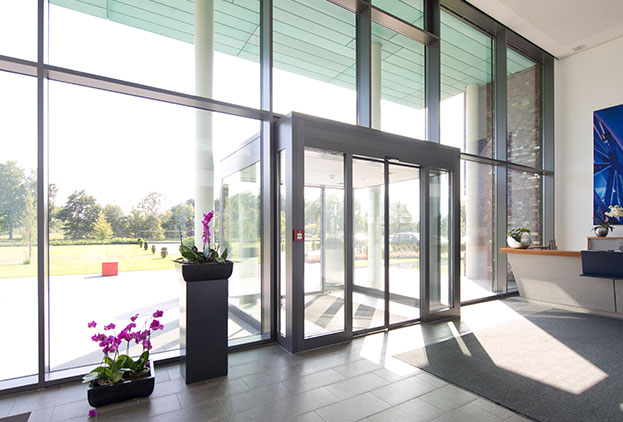

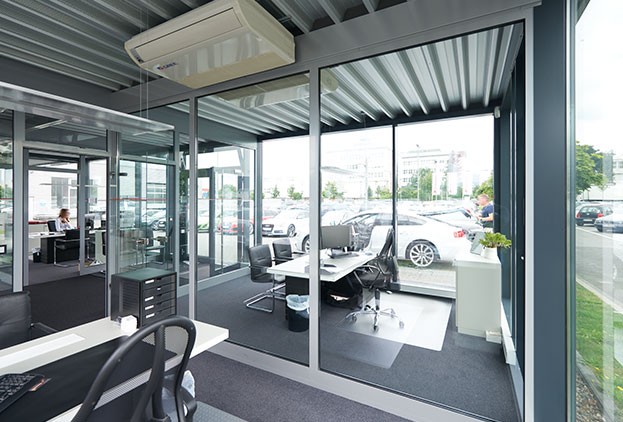

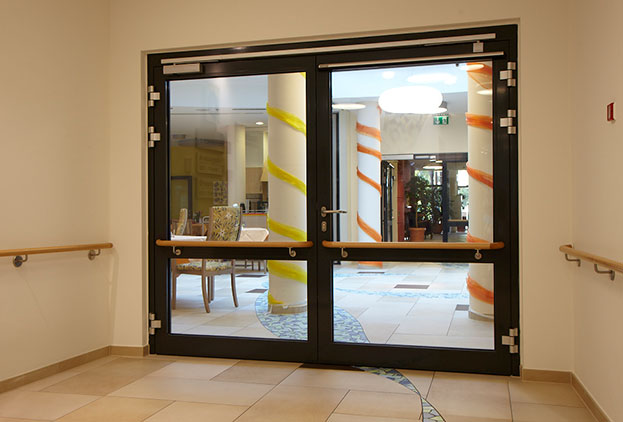

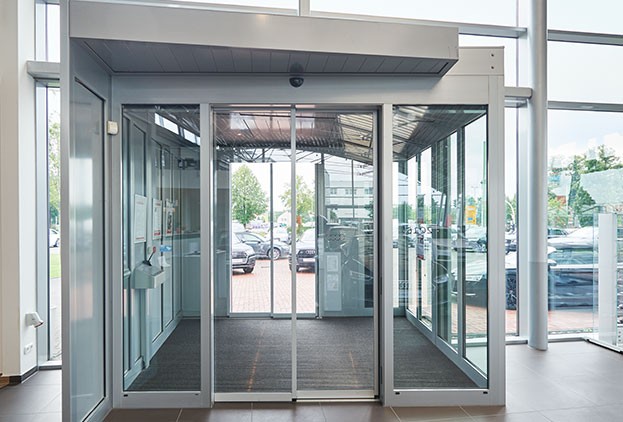

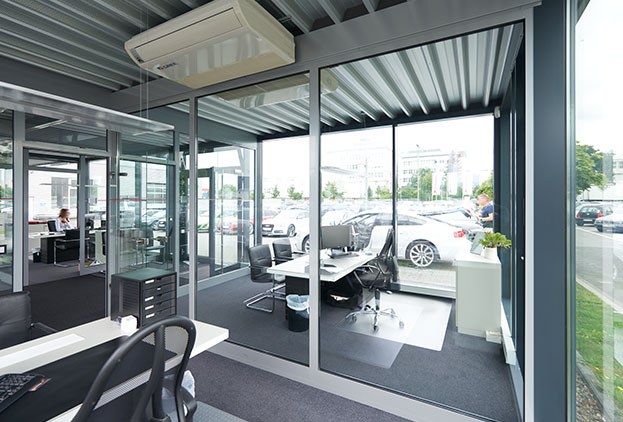

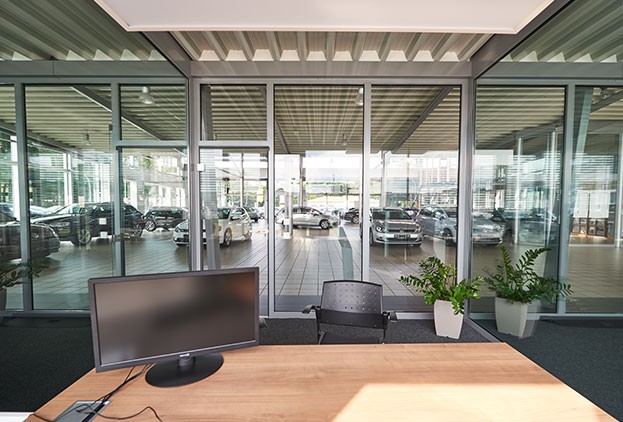

References

Advantages of heroal at a glance

Tailor-made solutions for unique and exceptional architecture
Competence in the fields of windows, doors, curtain walls as well as roller shutters, sun protection and roller doors
Our experts provide personal advice for you for the creation of your building project
Performance of special tests and provision of special solutions
Technical market leader for high-quality aluminium products
Awards for sustainable products
Products made in Germany
