heroal S 20 C

Sliding door system with frameless sashes

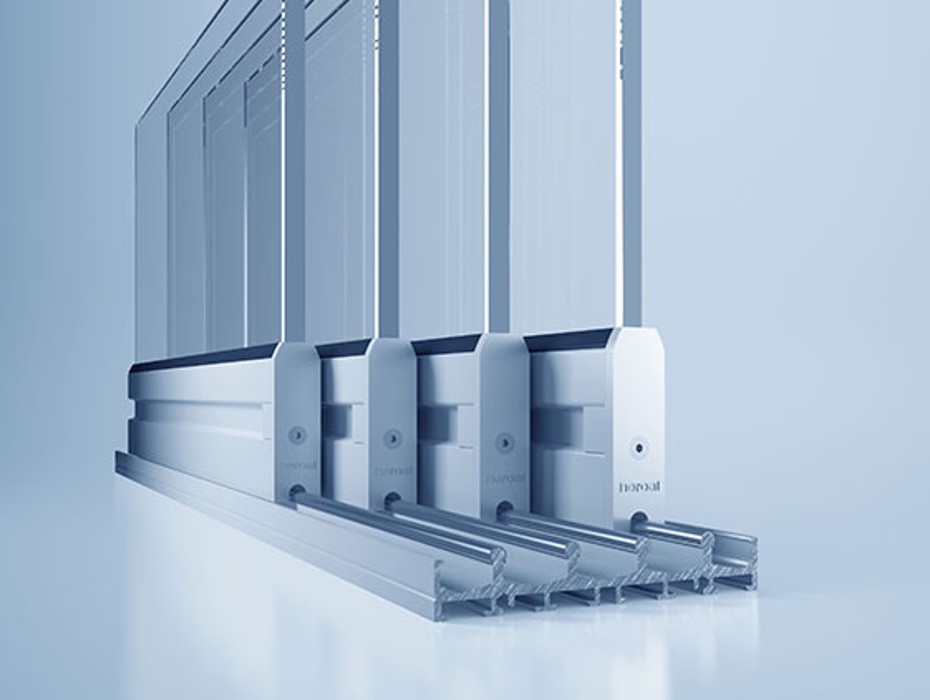

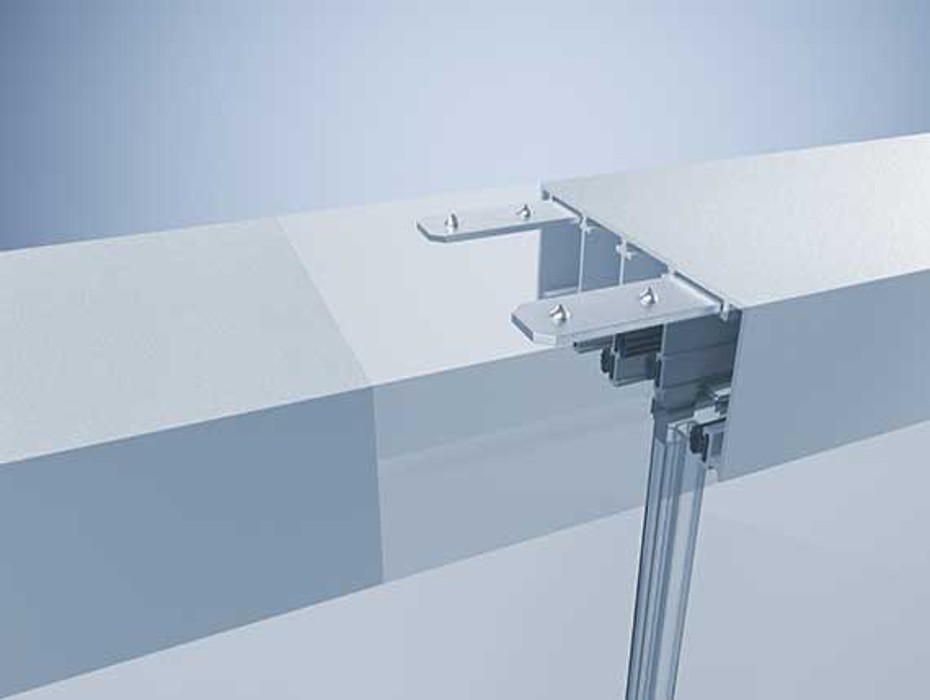

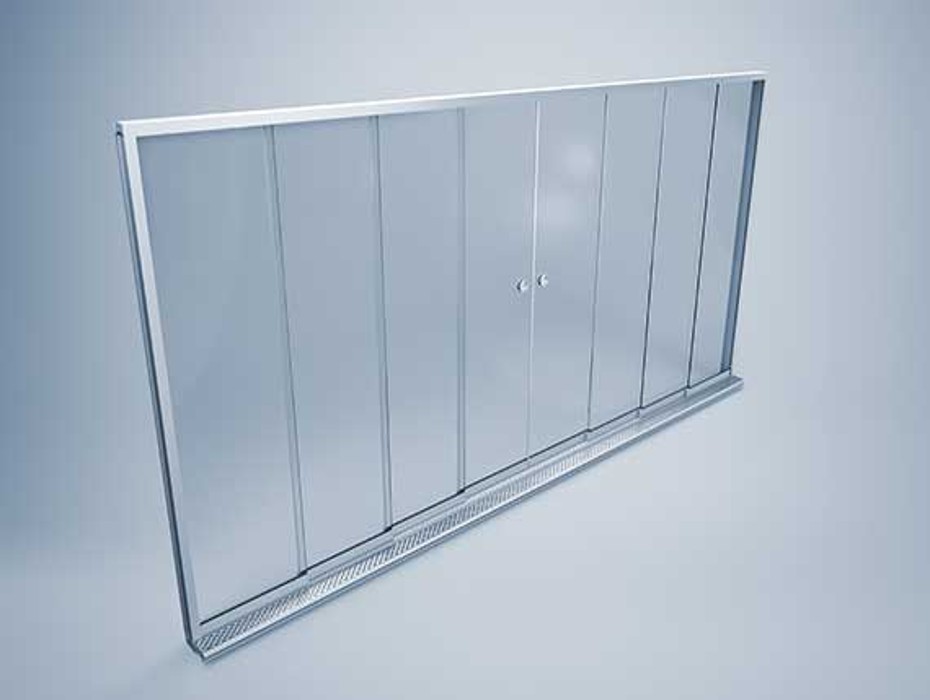

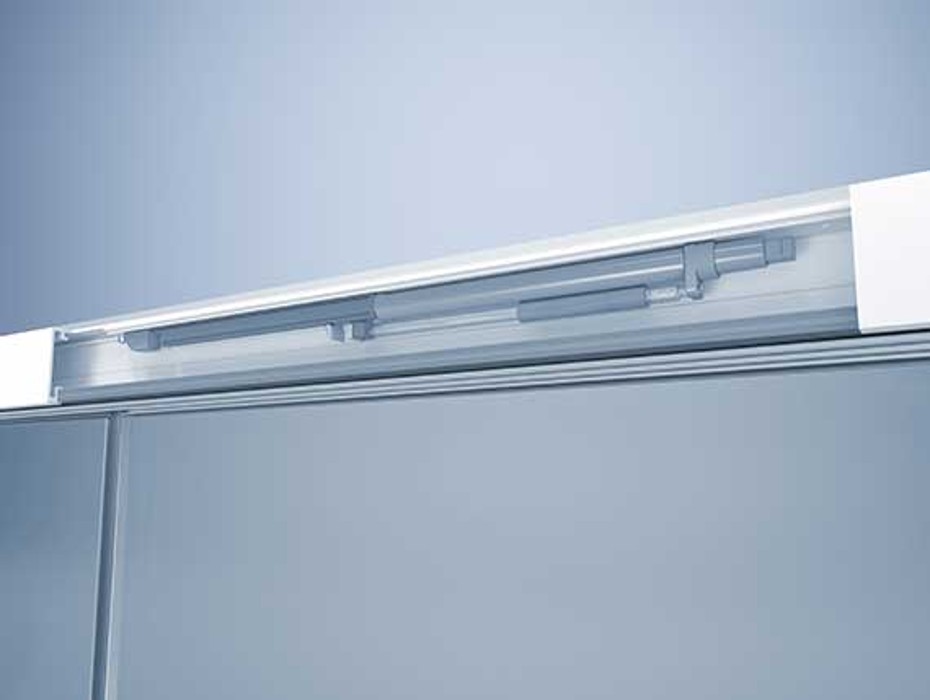

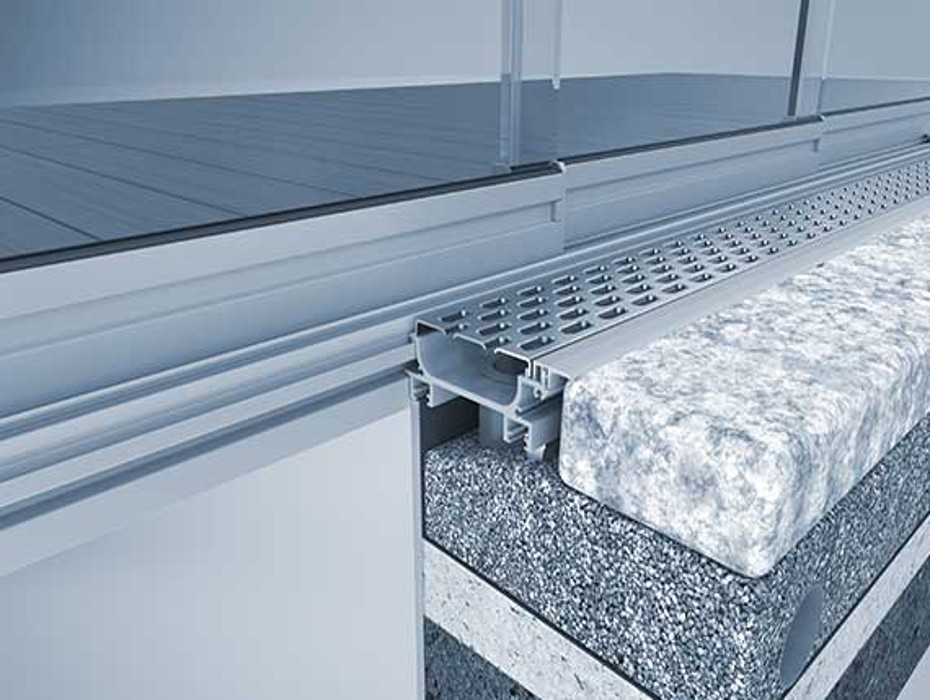

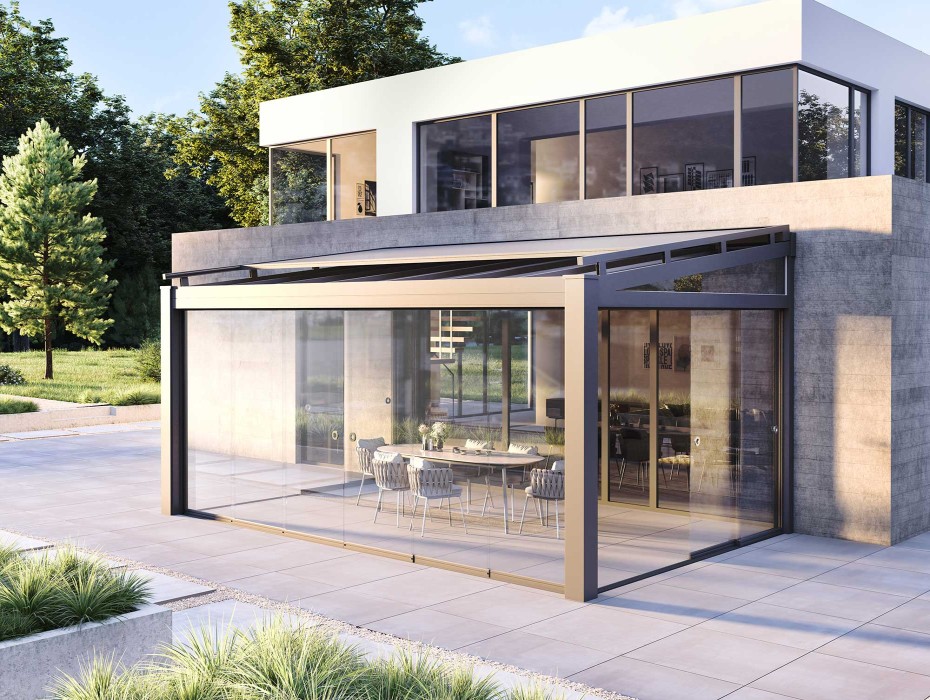

The non-insulated aluminium sliding door system heroal S 20 C makes it possible to use covered outdoor areas regardless of wind and weather. Frame connectors, adjustable slide mechanisms and glass clampings ensure a fast and easy manufacture. The sliding door system heroal S 20 C offers a variety of opening types. The frameless sashes and a accessible threshold lend this sliding door a very elegant design and maximum transparency. Closing the elements is made easy and comfortable by means of sliding dampers, which act like a cushion and make sure that the elements are pulled into their final position safely. In addition, element carriers and durable stainless steel guide rails guarantee a durable, very comfortable operation. Cleaning is made easy by an integrated dirt drain.


System dimensions

Profile depth [mm]

Frame profile
83, 103, 129
Leaf profile
20

Visible profile width [mm]

Frame profile
18 (unten), 45 (seitlich)
Leaf profile
60

System properties

Glass filling strength [mm]
10
Max. leaf weight [kg]
80

Extras
