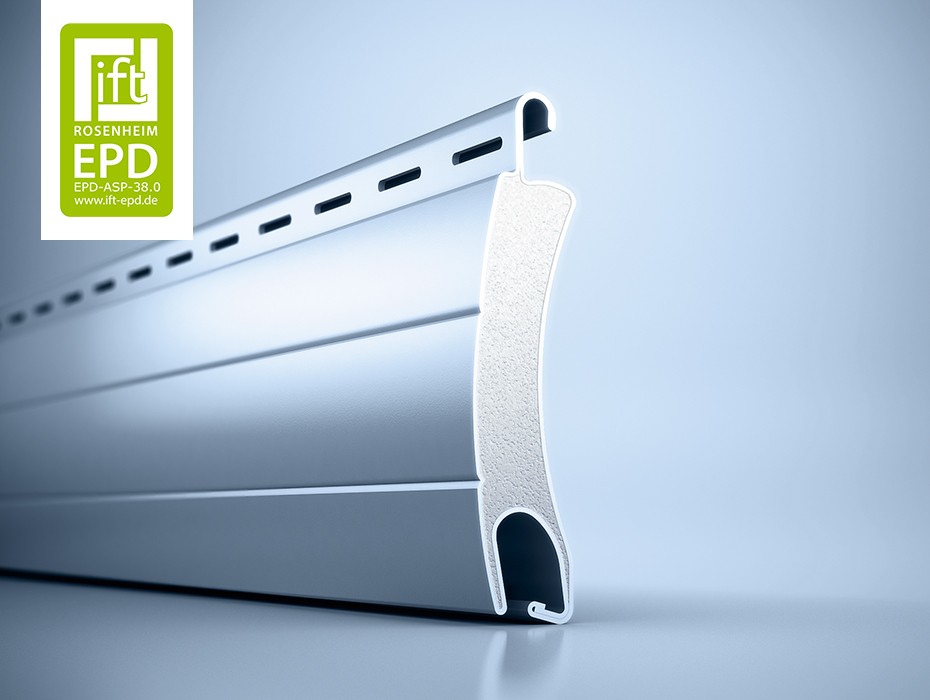

heroal RS 55 HD

Stable roller shutter slat with huge choice of colours

heroal RS 55HD is an extremely rigid aluminium roller shutter with a nominal thickness of 13.4 mm that is filled with high-strength foam (density: 600 kg/m³). The roller shutter slat impresses with its excellent winding properties as well as its exceptional wind load values (up to wind load class 6). It also satisfies hail resistance class 5 and is available in a huge selection of colours. heroal RS 55 HD can be used for roller shutters with a maximum height of 3,000 mm, a maximum width of 5,500 mm and an area of up to 15 m².

  • High stability
  • Good winding properties
  • Highly weather-resistant surface coating in countless colours

    Product Details

  • Processing advantages & product details

    Sustainability

    heroal roller shutter slats made from recycled, double-walled aluminium are hail- and weather-resistant and set themselves apart with natural protection against corrosion together with their excellent material stability. This makes them extremely durable as well as making a positive contribution to a building’s energy-efficiency thanks to the optimised use of materials, while the use of recyclable materials ensures a high level of environmental sustainability.

    Design

    The heroal 2-layer thick coating ensures exceptional fade and weather resistance for roll-formed aluminium components such as roller shutter or roller door slats and is even certified for demanding maritime applications. heroal roller shutter slats are characterised by an especially wide range of colours. For building shells that appear to be cast from the same mould, the heroal 2-layer thick coating and the heroal hwr powder coating for extruded elements are visually perfectly matched – for perfect colour matching with the extruded components of the roller shutter as well as heroal window, door, sliding door, curtain wall and roofing systems. Even the colours of renowned PVC window manufacturers are part of our huge colour selection.

    Comfort

    heroal roller shutter systems impress with their exceptionally quiet operation even when exposed to considerable heat. Motors from different manufacturers can be selected to flexibly adapt the operation to the specific requirement. Integration in Smart Home systems is also possible.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm]
    52
    Nominal thickness [mm]
    13,6
    Weight [kg/m2]
    10,5
    Max. width [mm]
    5.500
    Max. height [mm]
    4.000
    Max. area [m2]
    16,5
  • Performance characteristics

    RC 2 Resistance to burglary
    7 Hail class
    0,19 ΔR in accordance with EN 13125:2001
    6** Wind resistance

    * With steel strip mounting and 60-80k axle

    ** with 2500 mm element width

    Closed system including box: the burglary resistance class can only be achieved with a complete heroal system, consisting of the roller slat, the panel box heroal FMS 45°, the heroal guide rail and accessory components, in accordance with the certified parts list.

    Open system: the burglary resistance class can only be achieved as open heroal roller shutter system, consisting of the roller slats, the heroal guide rail and accessory components, in accordance with the certified parts list.

  • CAD & BIM data

  • Tender texts
