heroal RS 38

The roller shutter for high wind loads

The heroal RS 38 is a safe roller shutter solution particularly for regions with high wind loads. Excellent wind load values – resistance class 4 for element widths up to 2600 mm – are the result of the high stability of this roller shutter slat.

Design options

  • Potential total U factor value improvement of up to 42 percent
  • Highly weather-resistant surface with 2-layer thick coating
  • Wide selection of colours

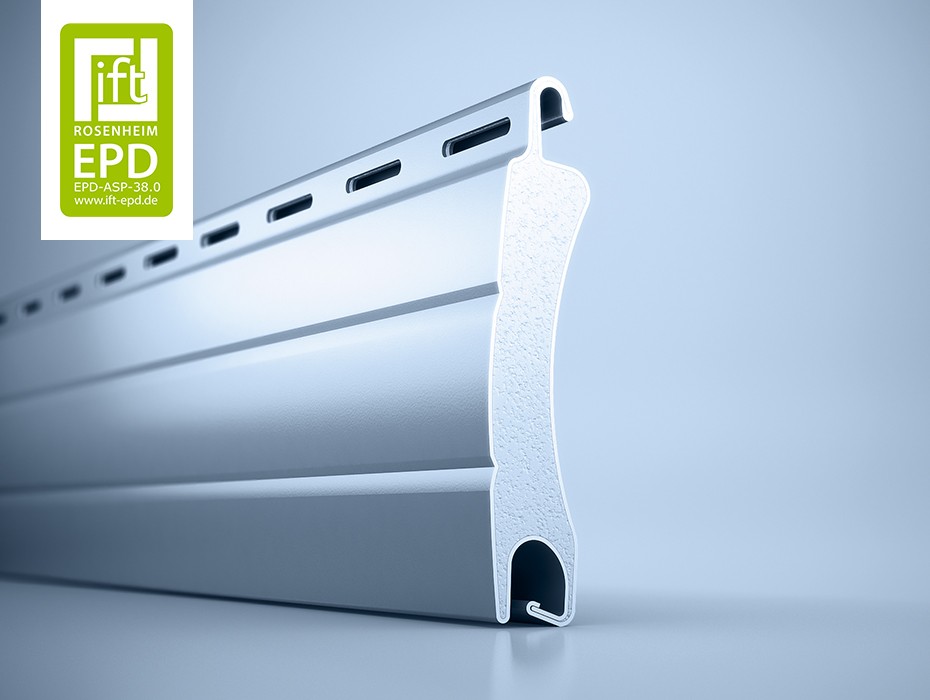

Cross section

System dimensions

Coverage width [mm]
38
Nominal thickness [mm]
9,0
Weight [kg/m2]
4,5
Max. width [mm]
3.700
Max. height [mm]
3.800
Max. area [m2]
8,0

Performance characteristics

0,19 ΔR in accordance with EN 13125:2001
3* Wind resistance
Resistance to burglary
4** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
