Fast and efficient manufacture of doors

Door sash profile reduces time and effort required in manufacture and installation

Thanks to its enhanced design, the sash profile heroal D 72 PF EM not only reduces the working steps required in the manufacture of doors, it also requires less material and reduces throughput times in the workshop by up to 20 %. heroal D 72 PF EM, with its limited range of design options and accessories, is an extremely economical solution, tailored to the market requirements for front doors. The profile geometry with its fixed inside stop without glazing strip (PF = “Panel Fixed“) has been designed for a standardised door panel thickness. This feature, as well as additional structural solutions, provide for a much easier and more efficient manufacture and installation, or mounting (EM = “Easy Mount“), and at the same time maintains the sophisticated system logic of the door system heroal D 72.

Advantages of this door sash profile for fabricators

  • Reduction in material input and working steps in manufacture
  • Extremely efficient fabrication
  • New insulating strip geometry provides for protection against warping without the need for additional manufacturing steps
  • Burglary resistance tested including resistance class RC 2
  • Sound insulation including class 3
  • Cradle to Cradle certified® (silver)
  • Inside stop prepared for standard door panel thickness of 48 mm
  • No additional machining of door panels required
  • Efficient panel fixing
  • Fault-tolerant manufacture and fabrication due to removal of shadow gap outside
  • New vulcanised corners for continuous door threshold seals
  • Increase in fabrication efficiency by approx. 20 % or more

More product details for heroal D 72 PF EM >

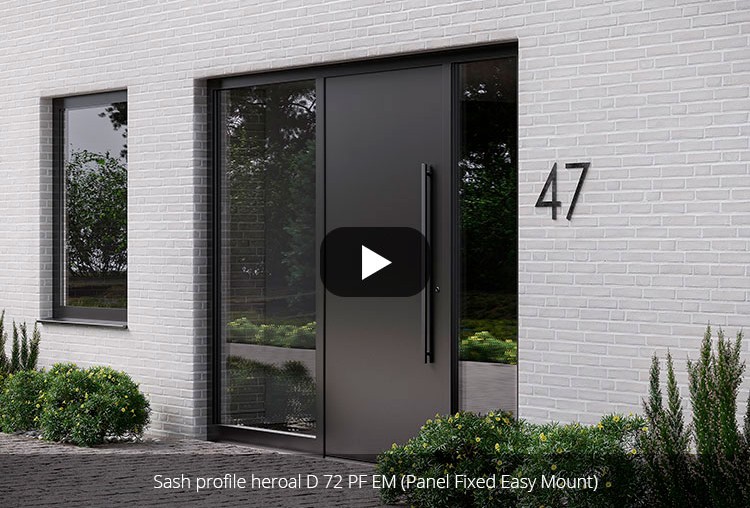

heroal D 72 PF EM at a glance

heroal D 72 PF EM (Panel Fixed Easy Mount)

The door sash profile heroal D 72 PF EM offers you a lot of advantages, such as a new insulating strip geometry, an enhanced sash design with fixed inside stop, an optimized panel attachment, and many more highlights. See for yourself.

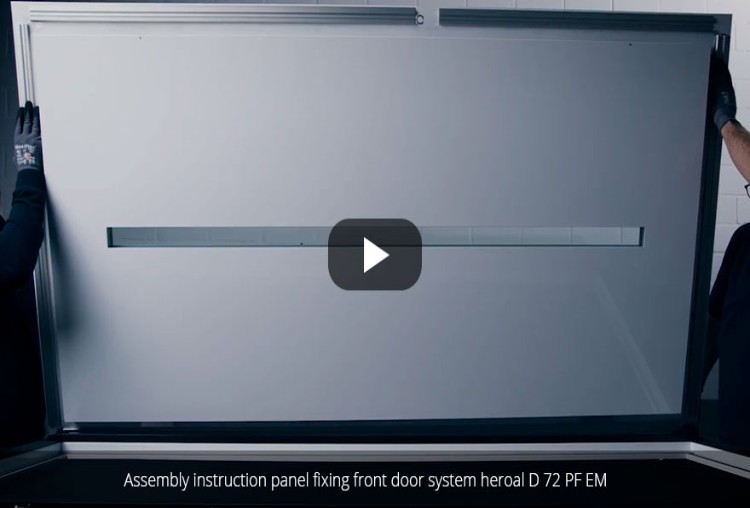

Installation instructions

Thanks to the reduction in working steps and less material input, installation is made much profitable for you. This economic solution helps you to increase your efficiency during fabrication by up to approx. 20 %, or even more.

Innovation Award Architecture + Building 2023

The new door sash profile heroal D 72 PF EM ensures a particularly fast and efficient fabrication while maintaining the familiar logic of the tried and tested residential and commercial front door system heroal D 72. As the panel attachment has been made extremely efficient and easy and does not require any bonding, the heroal D 72 PF EM door sash profile received the Innovation Award Architecture + Building 2023 at BAU 2023.

Join us! Become a heroal partner

Your customers will know about your commitment to quality thanks to the “powered by heroal” label. Take advantage of targeted support for your company. As our partner, you will become an important part of the heroal brand, which means maximum support for your business. You will be able to purchase products from the entire heroal range and not just single components. You will therefore benefit from the highest level of system reliability.

  • Individual system and software training
  • First-class technical support
  • Individual marketing support, including website building
  • Personal support by responsible field sales team

Would you like a non-binding product consultation?

Request product consultation >

Would you like an insight into our production process?

Sign up for a factory tour >

Would you like to attend heroal training?

Enquire about training >

Highest Quality for Innovative System Solutions

The heroal brand stands for premium quality "Made in Germany". Our products are certified and manufactured exclusively at our production sites in Germany. An outstanding feature of our systems is that the individual components are perfectly coordinated. The system solutions combine the best material properties of aluminium and aluminium composites with economic assembly and high-quality design – sustainable and flexible. In combination, heroal system solutions make energy saving easier, building safer and make a valuable contribution to the sustainability of buildings.


The responsible use of resources is part of heroal's corporate philosophy. Recycled aluminium is therefore used in our production.


All systems and components are certified according to ISO EN 9001 and are manufactured exclusively at the German production sites, using a machine park specially developed by heroal for this purpose.


Safety, comfort and design are combined individually – depending on the wishes of the client or the user. In addition to windows, doors, curtain walls, roller shutters, roller doors and sun protection, heroal also offers a variety of solutions for special systems of all kinds.
