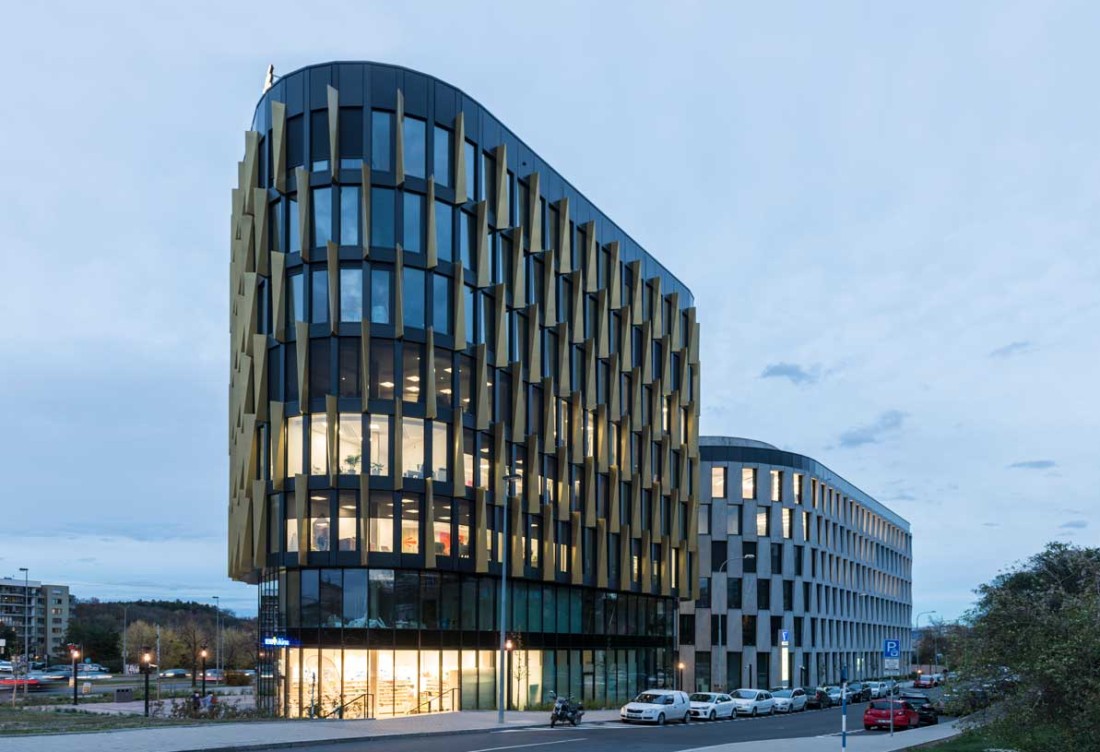

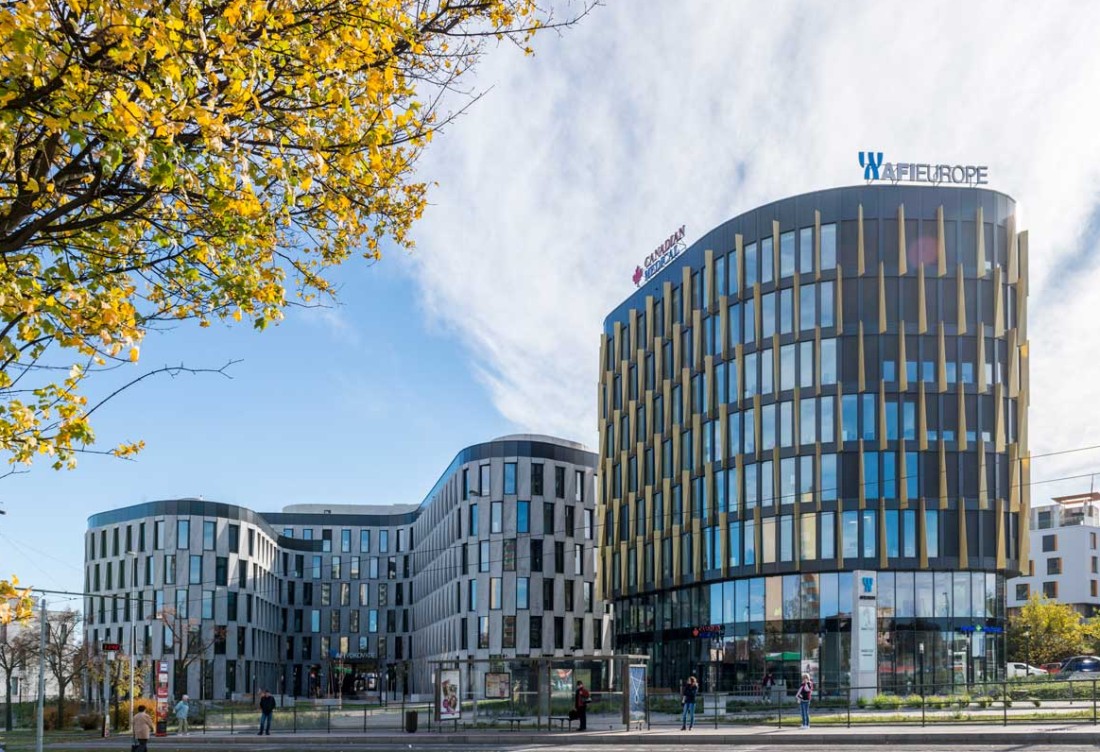

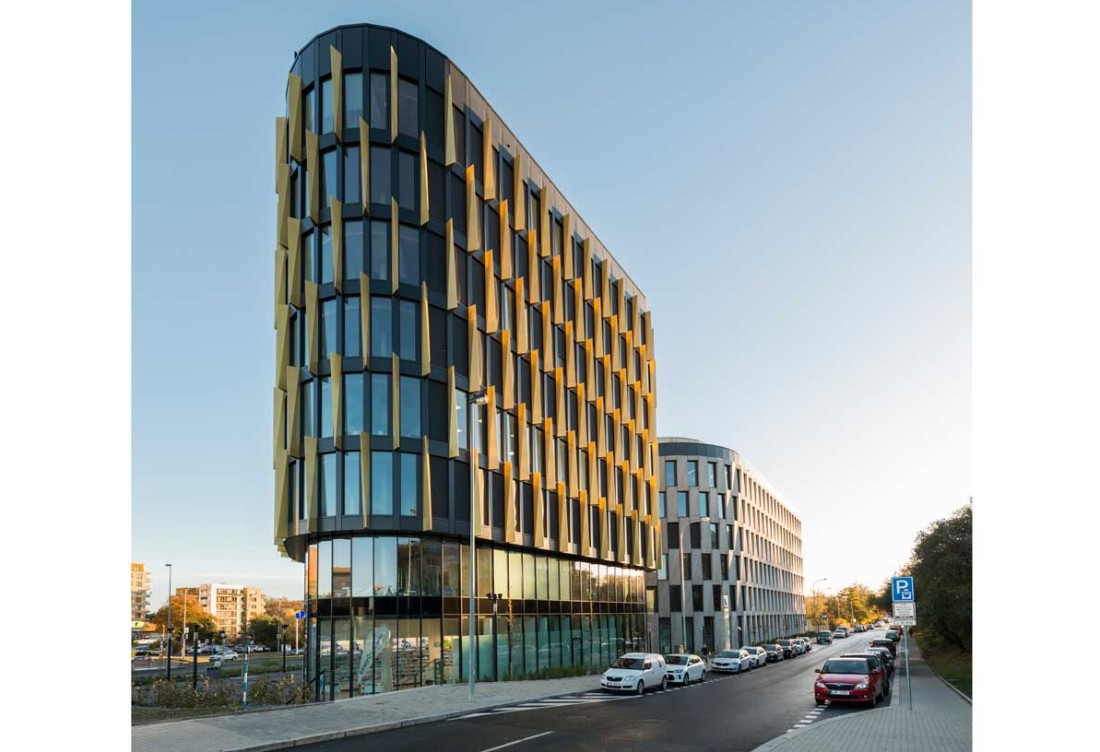

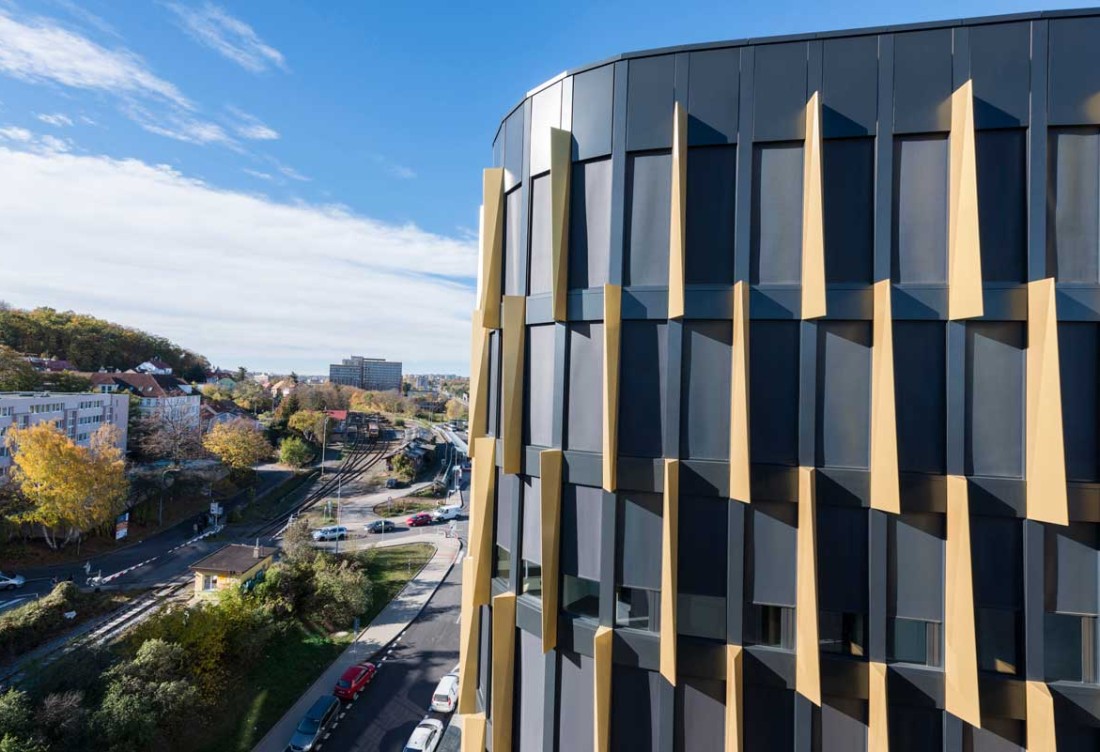

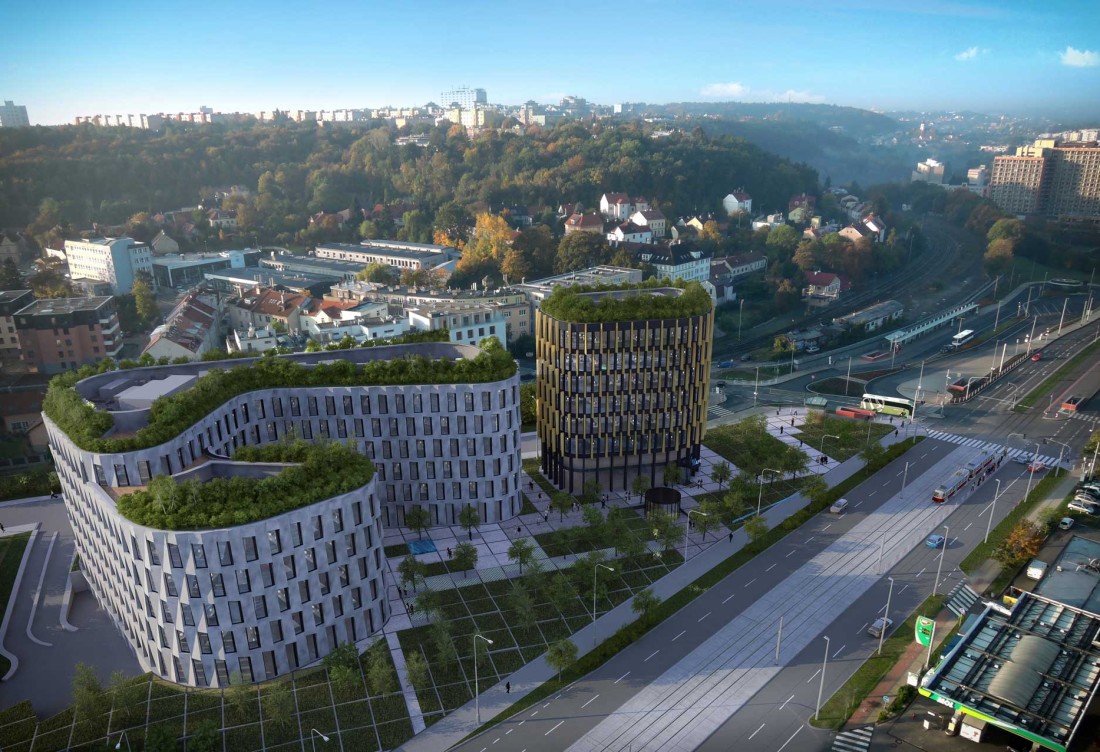

AFI Vokovice in Prague, Czech Republic

The heroal D 72 door system offers functional versatility with a range of opening types for typical heroal performance features. The tested and certified heroal system allows all conventional types of openings to be implemented, including tested emergency exits and escape routes (according to DIN EN 179/1125), ­automatic door systems, finger guard doors and burglar-resistant doors – also with the emergency exit door function.

heroal VS Z is an innovative zip screen system that is installed as external sun protection and is suitable even for very tall buildings. The curtain is guided in the aluminium guide rails by a zip attached to the fabric. With a view width of just 25 mm, the guide rail of the heroal VS Z is one of the pioneers on the market. A range of different guide rails are available, which, depending on the version, are characterised by their particularly narrow view width or can be completely plastered if desired. The high-quality textile selection consists of translucent and opaque fabrics, which allow solar radiation to be reduced by up to 100%* through reflection and absorption of sunlight. At the same time, the UV radiation is filtered by up to 100%*.

_{* depending on the chosen textile}

• Extremely wind resistant (up to 145 km/h)
• Suitable for tall buildings
• From almost transparent to blackout (up to 100 %)

The new ventilation flap heroal W 72 VF meets the demand for a comfortable and healthy room climate. As an independent, motor-driven ventilation flap, this product supports architects and planners to design controlled, natural ventilation concepts for day and night. Narrow, floor-to-ceiling opening elements integrate almost invisibly into the façade – simply, harmoniously. An individual, customized coating of the surface enables you to set deliberate accentuations of colour. Highly thermal insulated sashes and concealed hinges combine highest functionality with heat insulation and burglary protection.

Available as a heroal plus package.

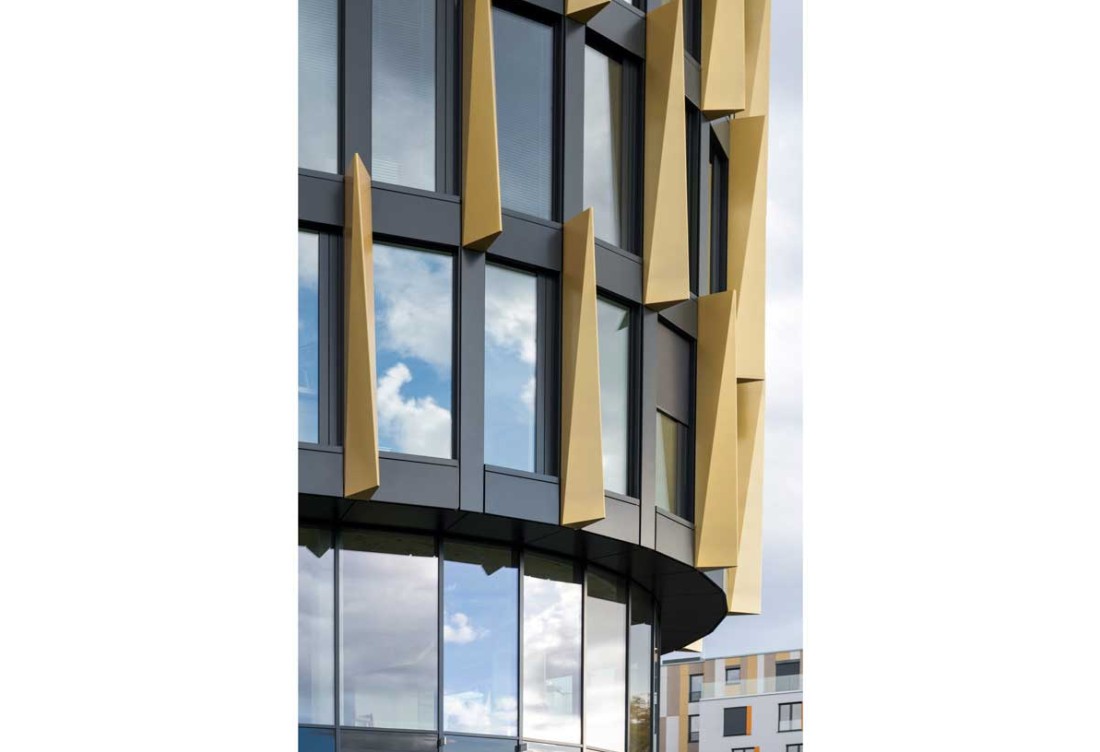

The heroal C 50 HI curtain wall system achieves outstanding energy-efficiency with conventional triple-glazed windows and makes sustainable curtain wall concepts possible. Special system construction details ensure fast, safe and efficient fabrication. This system too enjoys the benefits of the innovative concept for heat insulation with foam-filled insulators, adapted insulator function and the continuous seal. With a suitable façade panel and glazing, the heroal C 50 HI façade system is suitable for passive houses.

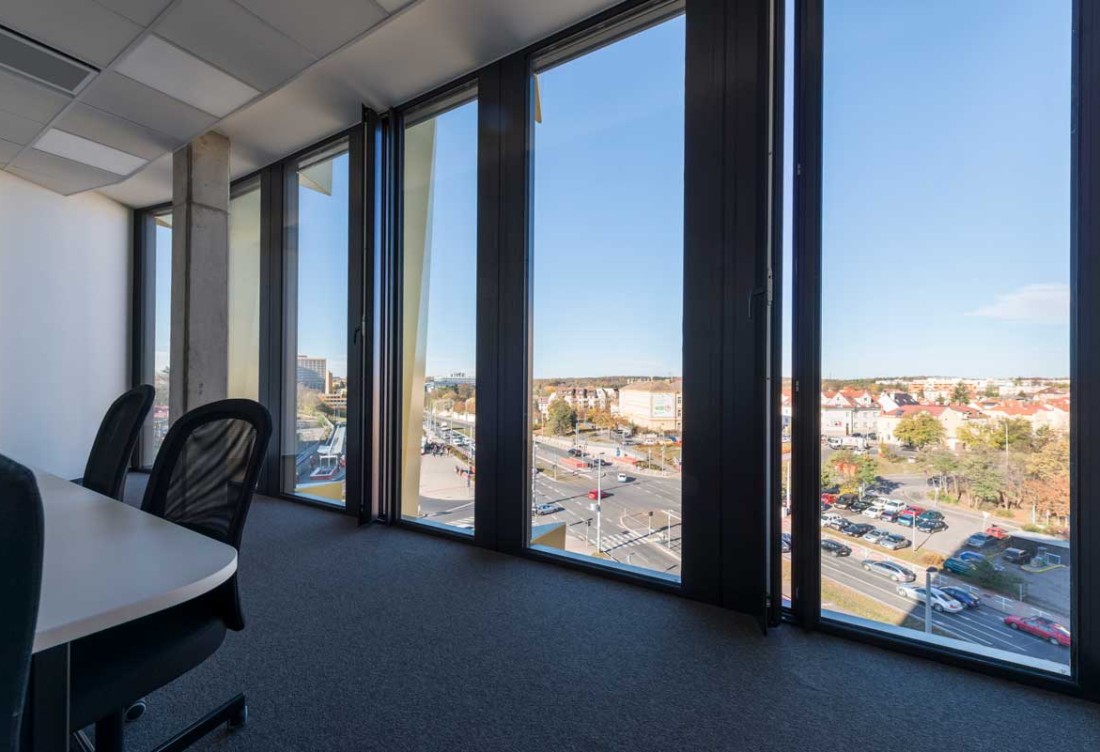

The window system heroal W 72 with its numerous variants offers the greatest possible freedom of design – from the planning phase to manufacture. In addition to supplementary elements, such as the ventilation flap heroal W 72 VF and parallel slide and tilt doors (PSK), this system also provides for perfect combinations with the door system heroal D 72. Sash profiles are available with push rod fitting grooves (SBN) and plastic fitting grooves (KBN), which makes a flexible fabrication possible. It is possible to create windows with a high proportion of glass, thanks to the small face width of just 90 mm. The standard heroal W 72 system with a face width of 120 mm achieves a low U_f value of 1.3 W/m²K, and can be further enhanced or extended. System extensions are heroal W 72 (w/o PU foam – reduction in U value through modification of the profile sealing zone and the use of alternative insulating material), heroal W 72 HI (Highly Insulated - enhancement of the U value through the use of different sealings and insulations) and heroal W 77 UD (Universal Design - French doors with a threshold height < 20 mm).

• high thermal insulation with low design depth
• proven performance features, combined with heroal WF and heroal WF EM fittings
• comprehensive range for every application

Available as a heroal plus package.
