heroal W 77 i

Block Window System for Maximum Transparency

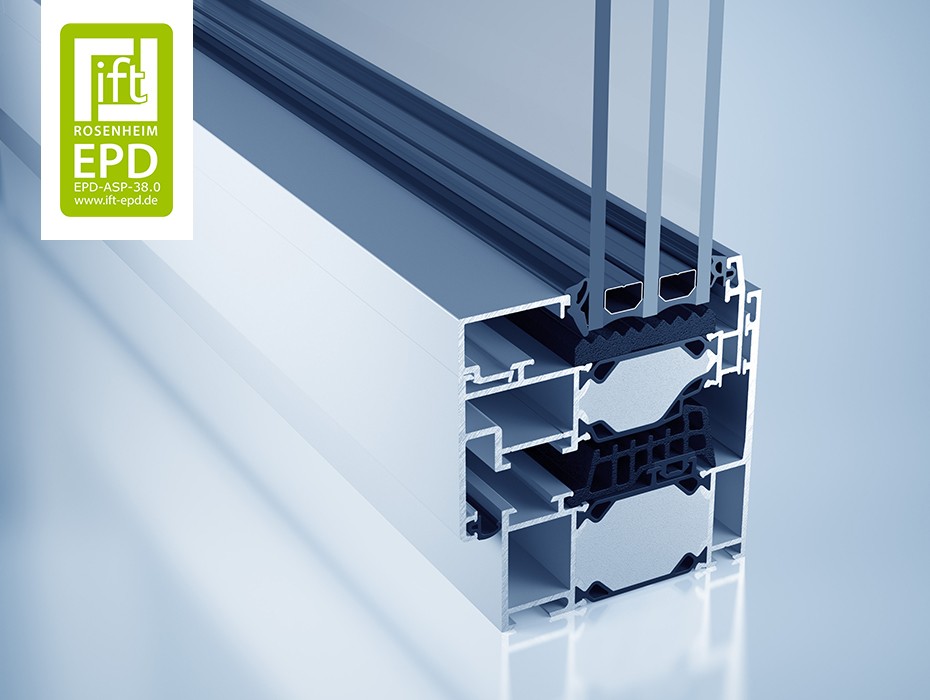

The block window system heroal W 77 i combines a slim design and maximum transparency with top-grade heat insulation. The outer appearance of the window, its invisible sash ideally emphasizing the slim face widths of the system, and heat insulation values of Uf 1.0 W/m²K (standard average) meet highest architectural and energetic requirements. The filigree design makes the system especially suitable for residential and commercial construction. The concealed system fittings heroal WF 100 I in particular enhance the elegant design.

The future-proof aluminium compound system is available with conventional inner glazing; its elements serve a number of purposes, including the use as curtain wall insert elements.

Video: heroal W 77 > Contact us >

    Product Details

  • Brochures & test certificates
    Test certificates
    Test certificate

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    77
    Leaf profile
    84
    Bar profile
    77

    Visible profile width [mm]

    Frame profile
    70 - 140
    Leaf profile
    11
    Sash/frame combination
    81
    Bar profile
    94 - 194

    Casement profi e variations

    Push rod fitting groove [SBN]
    •
    Plastic fitting groove [KBN]
    •

    System properties

    Glass filling strength [mm]
    64
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.400
    Max. leaf widths [mm]
    1.200

    Sectional Drawings

  • Performance characteristics
    RC 2 Resistance to burglary
    3 Continuous function
    9A Resistance to driving rain
    5 Impact resistance
    > 0,72 Heat insulation (Uw in W/m2K) / Profile width [mm]
    1,0/101 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance

  • CAD & BIM data

    BIM data
    CAD data

  • Tender texts

    Tender texts

Extras

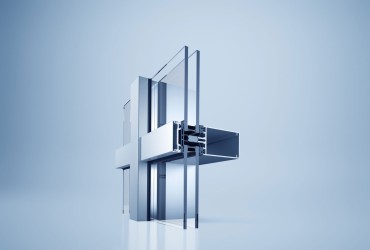

heroal C 50
