heroal RS 52

The roller shutter slat for high wind resistance

The durable roller shutter slats of the 50s series also characterise the heroal RS 52. With a nominal thickness of 13.5 mm and the medium density foam filling, the slat achieves excellent wind load values – wind resistance class 4 for element widths up to 2.700 mm. It is most suitable for use in small roller shutter boxes (Ø 178 mm barrel diameter with a curtain height of 2.000 mm).

Design options

  • Potential total U factor value improvement of up to 41 percent
  • Highly weather-resistant surface with 2-layer thick coating
  • Wide selection of colours

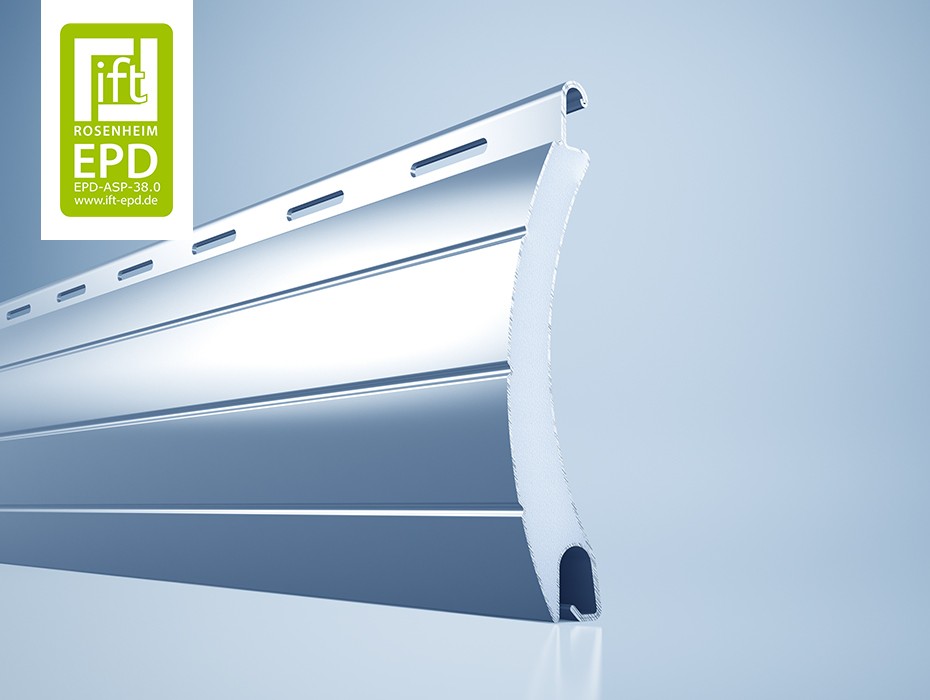

Cross section

System dimensions

Coverage width [mm]
52
Nominal thickness [mm]
13,5
Weight [kg/m2]
4,0
Max. width [mm]
4.500
Max. height [mm]
3.800
Max. area [m2]
9,0

Performance characteristics

0,20 ΔR in accordance with EN 13125:2001
4* Wind resistance
Resistance to burglary
5** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
