heroal RS 37 RC 3

High-grade steel slats with extremely high resistance level

The heroal roll-formed roller shutter slats RS 37 RC 3, made from high-grade steel alloy, are extremely durable and resilient. heroal systems with high-grade steel roller shutter slats and filled with a high density foam are tested and approved to resistance class RC 3, in accordance with DIN 1627. The heroal RS 37 RC 3 achieves the maximum hail protection, class 7.

Design options

  • Potential total U factor value improvement of up to 56 percent

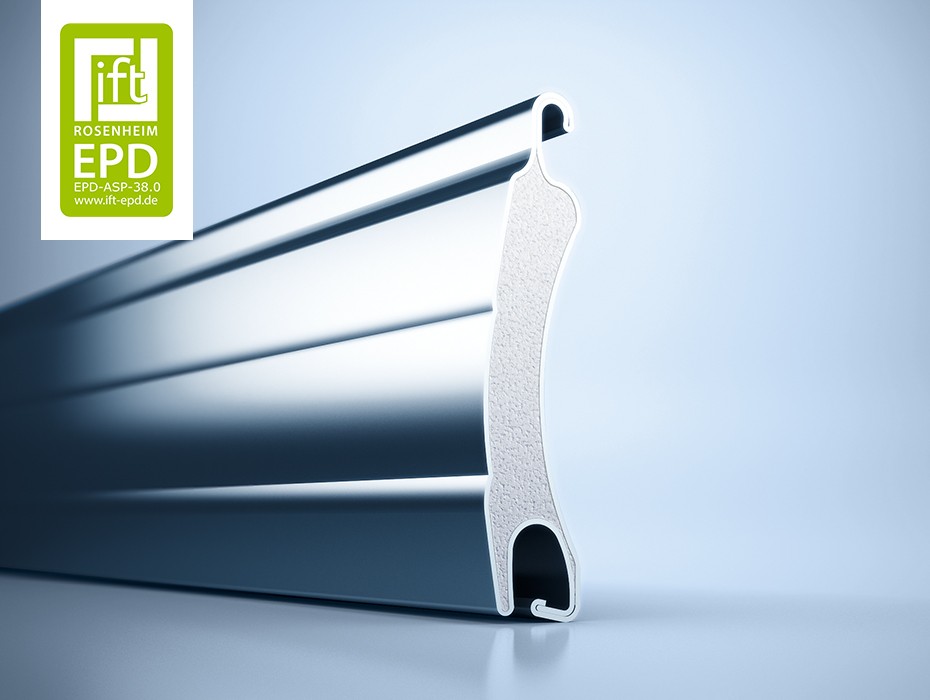

Cross section

System dimensions

Coverage width [mm]
37
Nominal thickness [mm]
9,5
Weight [kg/m2]
14,0
Max. width [mm]
5.000
Max. height [mm]
4.000
Max. area [m2]
12,0

Performance characteristics

0,20 ΔR in accordance with EN 13125:2001
6* Wind resistance
RC 3 Resistance to burglary
7** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
