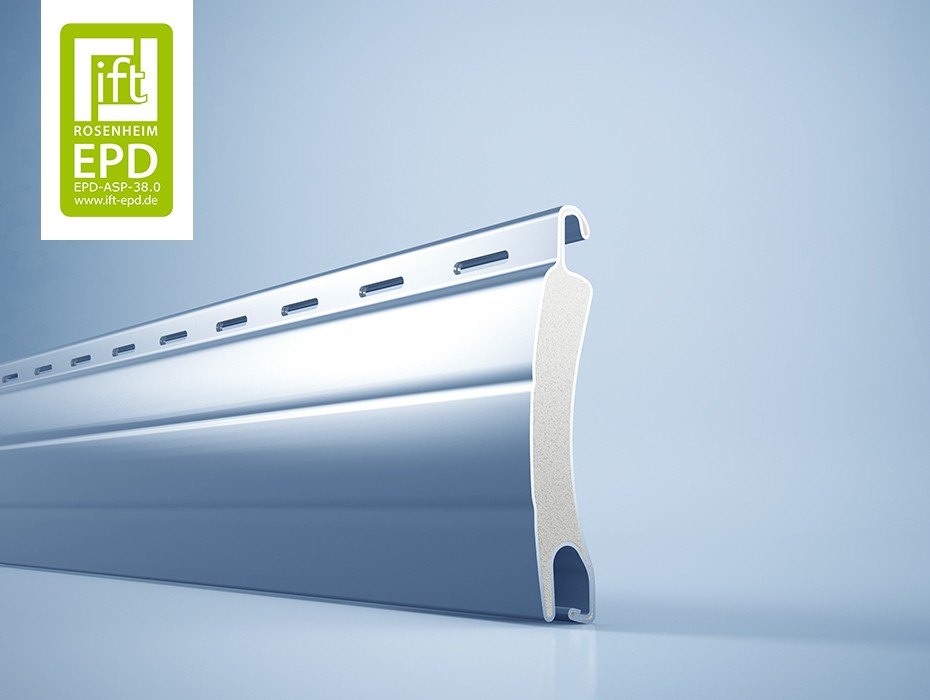

heroal RS 37 RC 2

RC 2 security roller shutter slat with burglary resistance

The foam filling, strengthened with melamin resin, gives the elegant heroal RS 37 RC 2 slat, which weighs 8.0 kg/m2, its excellent bending strength and stability. With a coverage width of 37 mm and a nominal thickness of 9.5 mm the slat is tested and approved up to resistance class RC 2 in accordance with DIN 1627. The heroal RS 37 RC 2 has also been awarded hail class 7.

Design options

  • Potential total U factor value improvement of up to 41 percent
  • Highly weather-resistant surface with 2-layer thick coating


Cross section

System dimensions

Coverage width [mm]
37
Nominal thickness [mm]
9,5
Weight [kg/m2]
8,0
Max. width [mm]
4.200
Max. height [mm]
4.000
Max. area [m2]
10,5

Performance characteristics

ΔR in accordance with EN 13125:2001
4* Wind resistance
RC 2 Resistance to burglary
7** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
