heroal RS 42

Robust, tightly wound slat with 42 mm coverage width

The heroal RS 42 provides space-saving, tight winding with a weight of 3.9 kg/m² and with an element width of 2900 mm. It achieves the very good values of wind resistance class 3 thanks to a robust nominal thickness of 9.3 mm.

Design options

  • Potential total U factor value improvement of up to 43 percent
  • Highly weather-resistant surface with 2-layer thick coating
  • Wide selection of colours

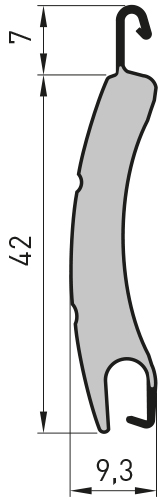

Cross section

System dimensions

Coverage width [mm]
42
Nominal thickness [mm]
9,3
Weight [kg/m2]
3,9
Max. width [mm]
3.500
Max. height [mm]
3.500
Max. area [m2]
7,0

Performance characteristics

0,19 ΔR in accordance with EN 13125:2001
2* Wind resistance
Resistance to burglary
3** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
