heroal FMR Q

Roll-formed surface-mounted roller shutter box with quarter rounded look

The quarter round, roll-formed panel heroal FMR Q is the perfect surface-mounted variant for deep window reveals: At the top, it is flush with the lintel - an elegant box solution with a subtle look. If required, the front panel can be removed completely, providing for a large inspection opening.

  • Quarter round surface-mounted panel system for flush installations into the reveal
  • Box sizes 137 to 205 mm
  • Highly weather resistant surface refinement with 2-layer thick coating

    Product Details

  • Processing advantages & product details


    The heroal FMR Q, made from recycled aluminium, stands out for its high material stability. This panel system is extremely durable, thanks to walls made from high-quality aluminium alloys, and the use of the special heroal connection technology. The watertight inspection cover at the top protects the panel box against penetrating damp.


    The heroal FMR Q stands out for its aesthetically appealing quarter rounded look. heroal 2-layer thick coatings, which have even been certified for marine use, make sure that the heroal FMR Q is extremely colourfast and weather resistant. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with heroal systems for windows, doors, sliding doors, curtain walls and roofings.


    Special guide rails provide for the integration of insect screens into the panel box system. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

  • Dimensions & drawings

    Number of panel parts
    Number of box sizes
    Sizes from - to
    137 - 205

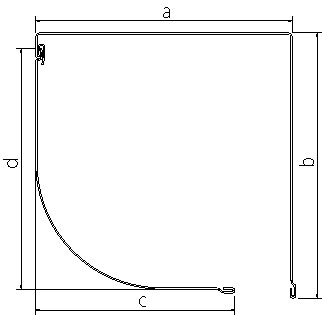

    Sectional Drawings

  • Performance characteristics

    6** Hail class
  • CAD & BIM data

  • Tender texts
