heroal S 77 SL

Perfect combination of transparency and heat insulation

heroal S 77 SL opens up new large dimensions and guarantees maximum transparency with its unique innovative frame construction.

The new generation of heroal lifting-sliding doors combines a movable monorail casement with fixed frame glazing and minimal view widths.

This large frameless glazing with clean lines forms an almost invisible link between the inside and outside, extending the living space beyond its actual limits. The heroal S 77 SL lifting-sliding system is a new architectural design element that creates a new sense of space.

The heroal S 77 SL lifting-sliding system creates a harmonised balance between contemporary design, maximum comfort and consistent functionality. Thanks to its elegant and modular construction details, the heroal S 77 SL has unlimited uses in new buildings and renovations.

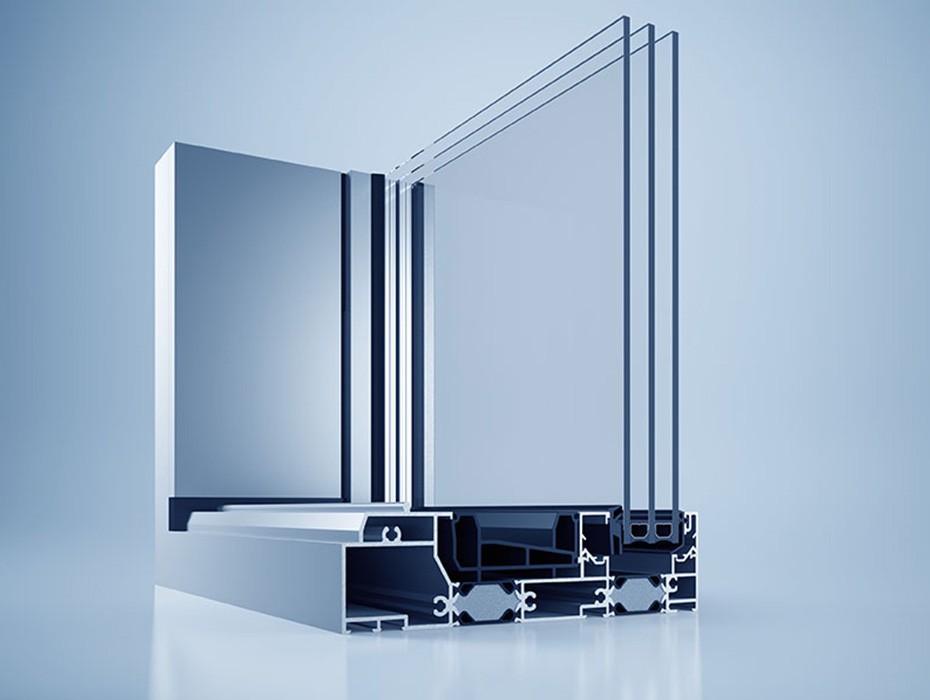

Cross section

System dimensions

Profile depth [mm]

Frame profile
202
Leaf profile
77
Bar profile
72

Visible profile width [mm]

Frame profile
40/52
Leaf profile
104
Bar profile
74 - 104

System properties

Glass filling strength [mm]
52
Max. leaf weight [kg]
300 - 400
Max. leaf heights [mm]
3.000

Performance characteristics

>1,2 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
>0,82* Heat insulation (Uw in W/m2K) / Profile width [mm]
9A Resistance to driving rain
C3/B3 Wind resistance
Soundproofing class
RC 2 Resistance to burglary
Operating forces
Impact resistance
Mechanical resistance
Load-bearing capacity of safety equipment
Continuous function

!) Application-specific special approvals for oversized elements from heroal
