heroal S 42

heroal S 42 - brochure 5.46 MB

Efficient and functional

The heroal S 42 sliding system is characterised by top quality combined with maximum efficiency with regard to energy and cost. A slim appearance, accessibility and comfort are just some of the performance features of the heroal S 42 sliding system. These features guarantee flexible installation as sliding windows or French doors in industrial and residential construction.

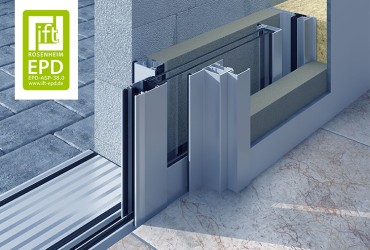

Cross section

System dimensions

Profile depth [mm]

Frame profile
72 - 79
Leaf profile
38 - 42
Bar profile
38

Visible profile width [mm]

Frame profile
48
Leaf profile
68
Bar profile
68

System properties

Glass filling strength [mm]
28
Max. leaf weight [kg]
160
Max. leaf heights [mm]
2.600

Performance characteristics

Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
>1,4* Heat insulation (Uw in W/m2K) / Profile width [mm]
6A Resistance to driving rain
B2 Wind resistance
1-2 Soundproofing class
Resistance to burglary
Operating forces
Impact resistance
Mechanical resistance
Load-bearing capacity of safety equipment
Continuous function

!) Application-specific special approvals for oversized elements from heroal
