heroal D 72 CL - Front door system

Door system with slanted outer contour

The heroal D 72 CL front door system with elegant classicline contour offers functional versatility, a range of design options and outstanding heat insulation and static values. It can be used with all conventional opening types.

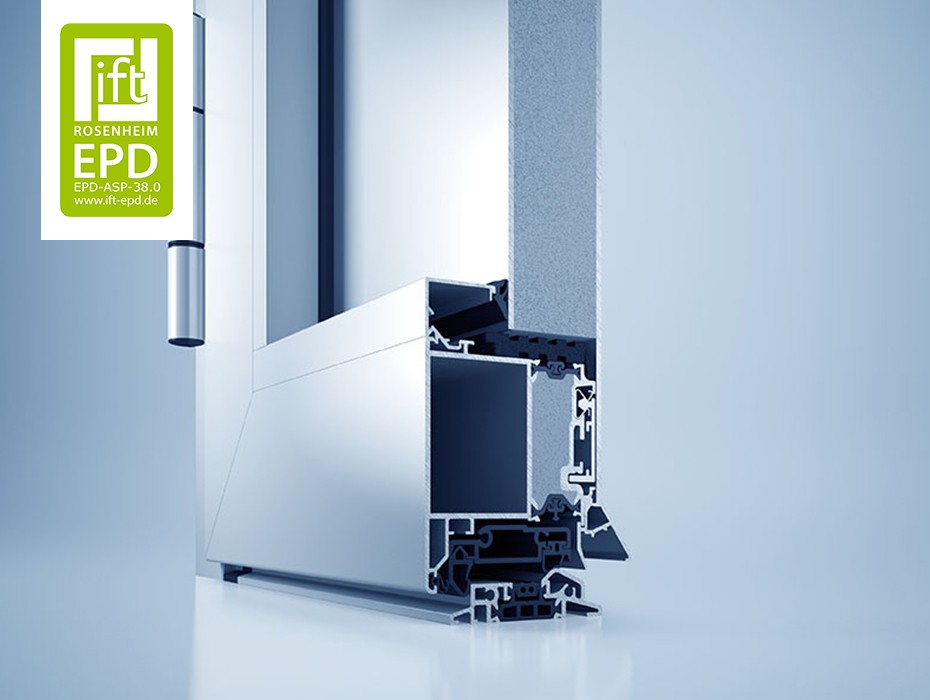

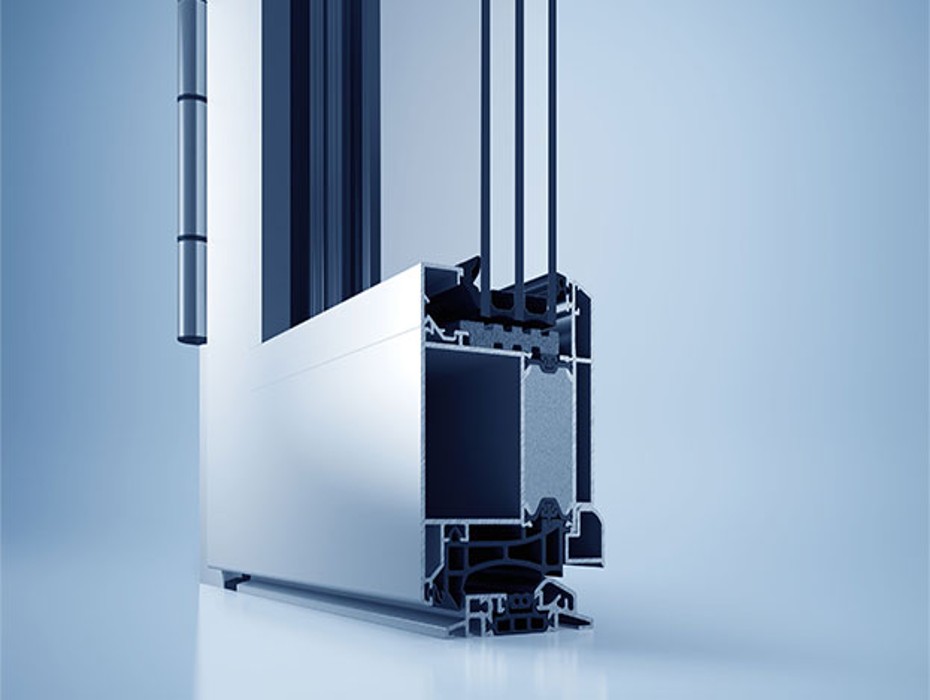

Cross section

System dimensions

Profile depth [mm]

Frame profile
60 - 154
Leaf profile
82
Bar profile
72 - 82

Visible profile width [mm]

Frame profile
60 - 154
Leaf profile
70 - 124
Bar profile
74 - 94

System properties

Glass filling strength [mm]
54
Max. leaf weight [kg]
180
Max. leaf widths [mm]
1.400
Max. leaf heights [mm]
2.500

Performance characteristics

>1,7 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
>1,0* Heat insulation (UD in W/m2K) / Profile width [mm]
4A Resistance to driving rain
C3 Wind resistance
1-3 Soundproofing class
RC 3 Resistance to burglary
2 Operating forces
4 Impact resistance
4 Mechanical resistance
Load-bearing capacity of safety equipment
6 Continuous function

* UD value according to DIN EN 10077-1, calculated based on element size 1230 x 2180 mm

!) Application-specific special approvals for oversized elements from heroal
