heroal W 72

The innovative system solution for the latest generation of sustainable, aluminium windows

Innovative, future-oriented window systems demand the highest quality with minimal energy and material consumption during manufacture and maximum efficiency for energy and costs throughout the lifetime of a product. To ensure the unique level of heroal quality, it has always been our policy to carry out the key production steps in our own factories, applying our own expertise. heroal has developed an innovative system solution for durable aluminium windows in line with this guiding principle, which is setting new standards – heroal W 72.

Contact us >

    Product Details

  • Brochures & test certificates
    Test certificates
    Test certificate

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    72
    Leaf profile
    84
    Bar profile
    72

    Visible profile width [mm]

    Frame profile
    50 - 250
    Leaf profile
    33 - 67
    Sash/frame combination
    90
    Bar profile
    74 - 254

    Casement profi e variations

    Push rod fitting groove [SBN]
    •
    Plastic fitting groove [KBN]
    •

    System properties

    Glass filling strength [mm]
    66
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.800
    Max. leaf widths [mm]
    1.600

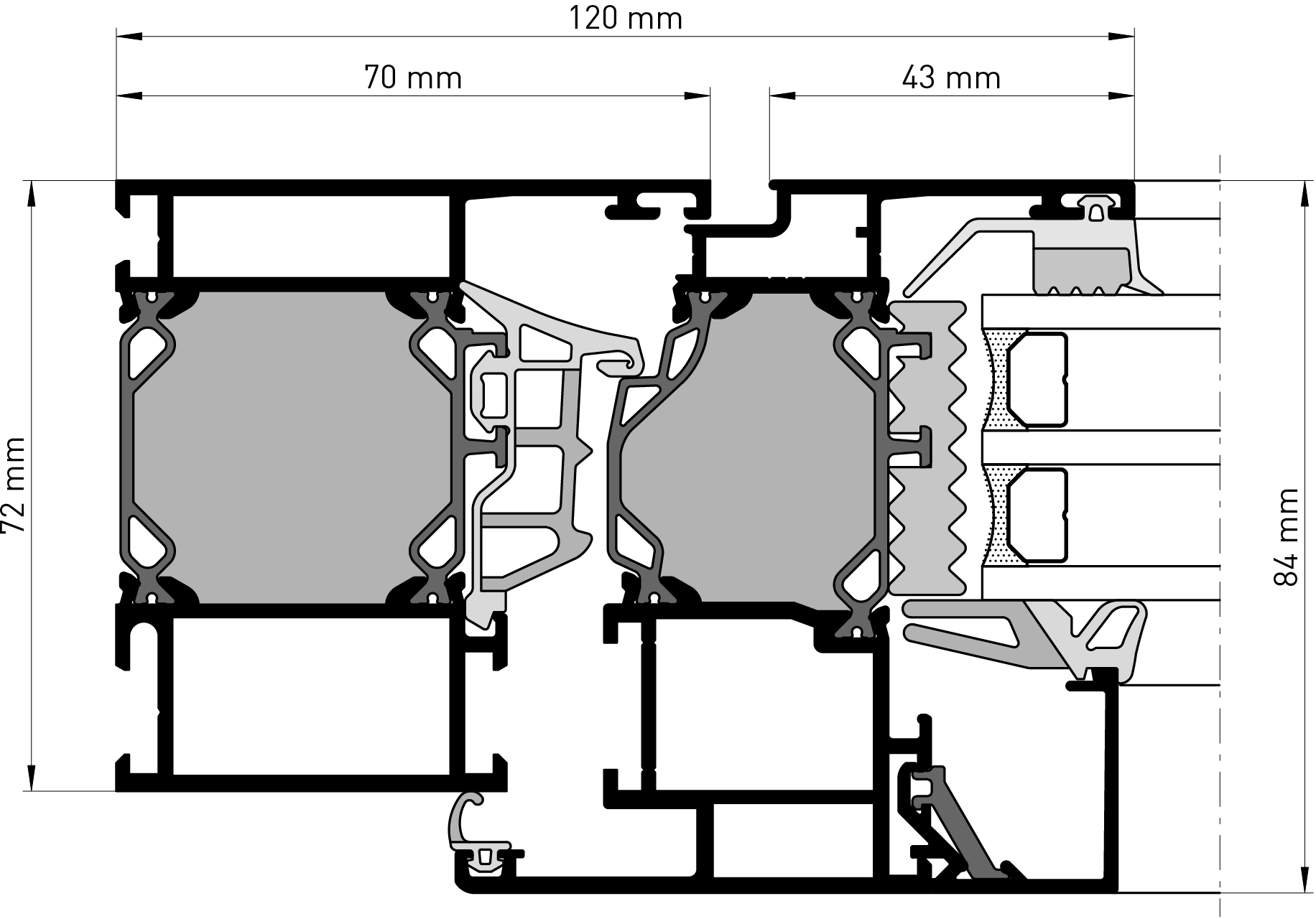

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    3 Continuous function
    9A Resistance to driving rain
    3 Impact resistance
    > 0,84* Heat insulation (Uw in W/m2K) / Profile width [mm]
    1,3/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance

  • CAD & BIM data

    BIM data
    CAD data

  • Tender texts

    Tender texts

References heroal W 72

Residence Garden Towers, Czech Republic
Commercial building near Bremen, Germany
Fritz Henssler vocational college, Germany
Headquarters Ovesco Endoskopy AG Tuebingen, Germany
Student Union Goettingen, Germany
Residential house near Wuppertal, Germany
Residential house near Hürth, Germany
