heroal W 72 CW

Facade design window system

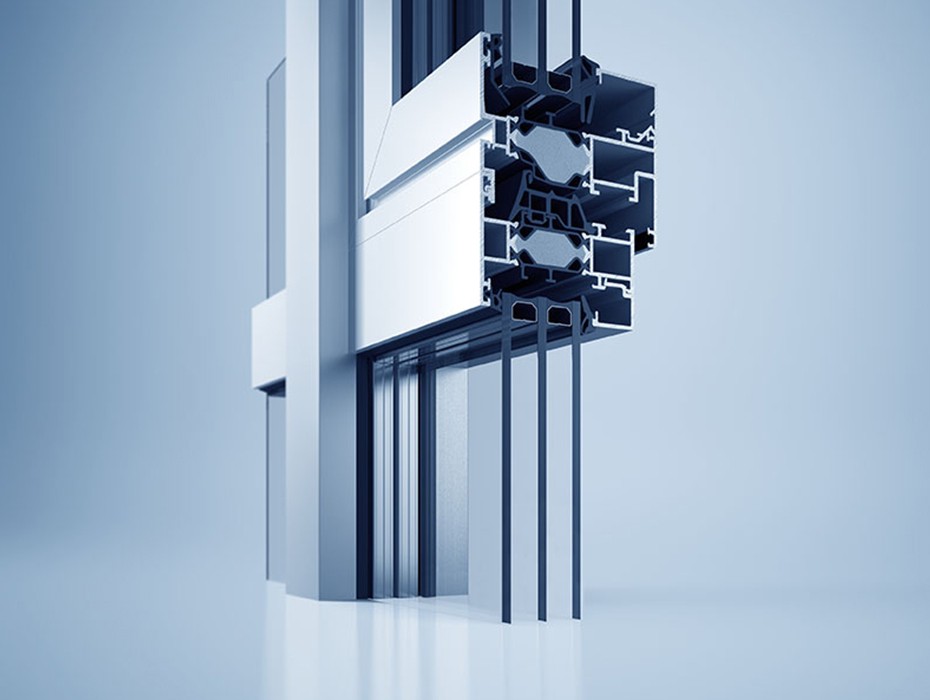

The heroal W 72 CW window system offers planners individual, object-oriented design options for window elements between floors. Large openings and spaces can thus be realised as a classic mullion and transom design. With a number of different profile variations to choose from, the heroal W 72 CW aluminium composite system is an attractive alternative to steel facades.

heroal W 72 - brochure 2.15 MB BIM data heroal W 72 System request >

System dimensions

Profile depth [mm]

Frame profile
72/106
Leaf profile
72 / 102-106
Bar profile
76,5 - 84

Visible profile width [mm]

Frame profile
28 / 38-50
Leaf profile
verdeckt / 33-43
Sash/frame combination
97 / 77
Bar profile
50

Casement profi e variations

Push rod fitting groove [SBN]
•
Plastic fitting groove [KBN]
•

System properties

Glass filling strength [mm]
64
Max. leaf weight [kg]
300
Max. leaf heights [mm]
2.800
Max. leaf widths [mm]
1.600

Performance characteristics

1,3/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
> 0,84* Heat insulation (Uw in W/m2K) / Profile width [mm]
9A Resistance to driving rain
C5/B5 Wind resistance
1 Operating forces
✓ Load-bearing capacity of safety equipment
