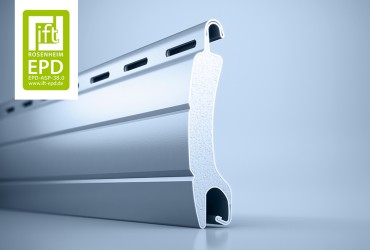

heroal RS 52

The roller shutter slat for high wind resistance

The durable roller shutter slats of the 50s series also characterise the heroal RS 52. With a nominal thickness of 13.5 mm and the medium density foam filling, the slat achieves excellent wind load values – wind resistance class 4 for element widths up to 2.700 mm. It is most suitable for use in small roller shutter boxes (Ø 178 mm barrel diameter with a curtain height of 2.000 mm).

Design options

  • Potential total U factor value improvement of up to 41 percent
  • Highly weather-resistant surface with 2-layer thick coating
  • Wide selection of colours


System dimensions

Coverage width [mm]
52
Nominal thickness [mm]
13,5
Weight [kg/m2]
4,0
Max. width [mm]
4.500
Max. height [mm]
3.800
Max. area [m2]
9,0

Performance characteristics

0,20 ΔR in accordance with EN 13125:2001
4* Wind resistance
5** Hail class

* with 2700 mm element width and a guide with 25 mm immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.

Extras

Tailored support for architects

In order to ensure all-inclusive support, heroal’s team of consultants offer advice across Germany. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

All information in the heroal Communicator

Our Communicator, heroal’s online workplace, always makes the current documentation available to you. Via the Communicator-App, you can get in touch with your architect’s consultant immediately.

  • Download test documents
  • Find product information
  • Readily available CAD data instantly
  • Download BIM data
  • Latest projects for reference
