heroal S 77

The versatile aluminium lift and slide system

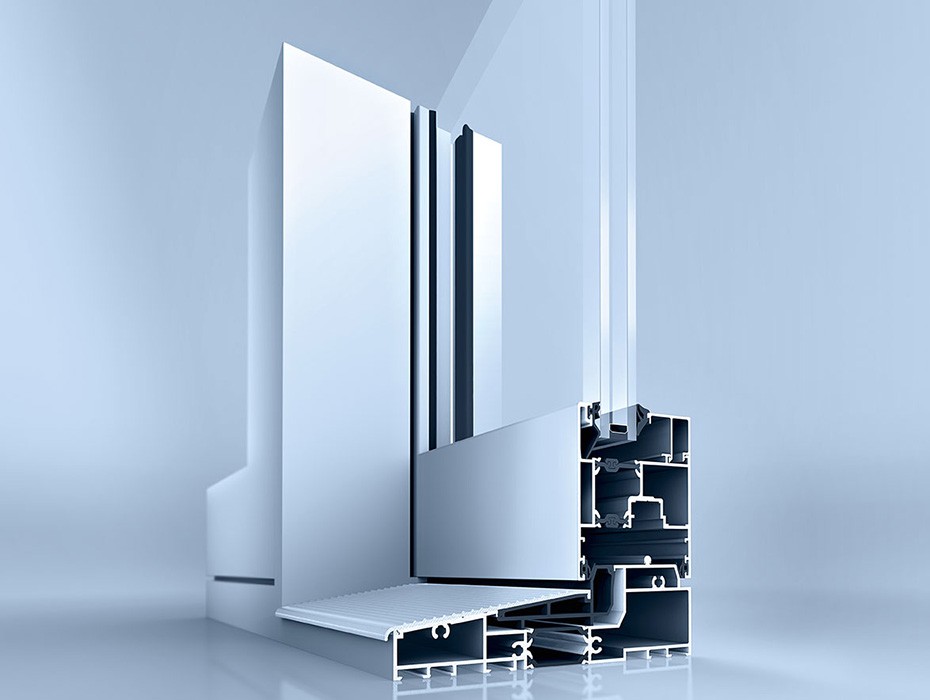

Versatility is our speciality: heroal S 77 is a modular profile system with a modern design that fulfils the strictest structural requirements. It offers a wide range of profile face widths, is compatible with other heroal systems and comes with an almost unlimited selection of surfaces.

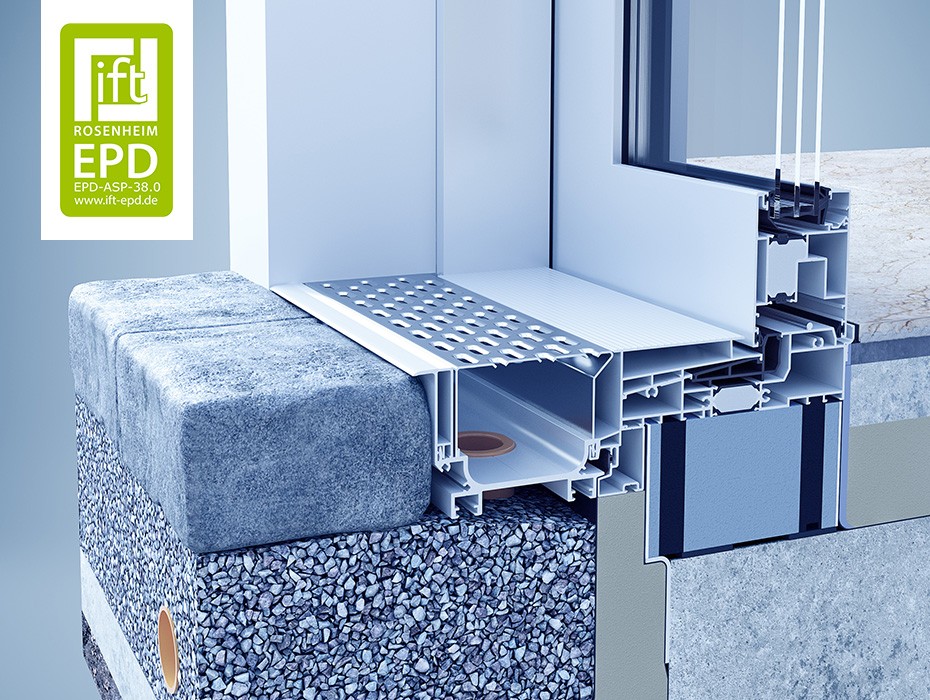

heroal S 77 can also be used to create multi-track design variants and barrier-free systems. Special leaf profile shapes ensure that all sizes and weights of leaf meet the applicable requirements and regulations for heat insulation. The heroal seal technology with three levels and sealed corners – for leaf and central joint sealing – ensures optimum air permeability and tightness against driving rain.


System dimensions

Profile depth [mm]

Frame profile
178/279
Leaf profile
77
Bar profile
72

Visible profile width [mm]

Frame profile
35 - 52
Leaf profile
94
Bar profile
74 - 104

System properties

Glass filling strength [mm]
52
Max. leaf weight [kg]
150 - 400
Max. leaf heights [mm]
3.000

Performance characteristics

> 2,8 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
> 1,1* Heat insulation (Uw in W/m2K) / Profile width [mm]
9A Resistance to driving rain
C3/B3 Wind resistance
1-3 Soundproofing class
RC 2 Resistance to burglary
1 Operating forces

* Uw value in accordance with DIN EN 12567-1; calculated using an element size 3,500 x 2,180 mm.

Extras

Tailored support for architects

In order to ensure all-inclusive support, heroal’s team of consultants offer advice across Germany. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

All information in the heroal Communicator

Our Communicator, heroal’s online workplace, always makes the current documentation available to you. Via the Communicator-App, you can get in touch with your architect’s consultant immediately.

  • Download test documents
  • Find product information
  • Readily available CAD data instantly
  • Download BIM data
  • Latest projects for reference
