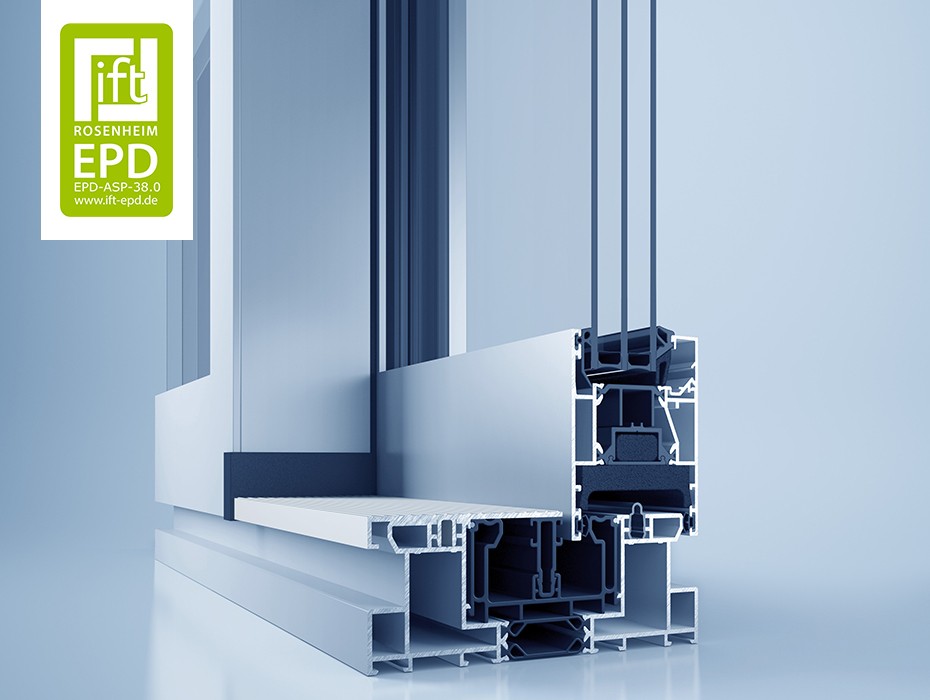

heroal S 65

Optimised sliding door system

The aluminium sliding door system heroal S 65 is characterised by a extremely easy and efficient production and an innovative sash design. The insulating strips have been especially developed for this sliding door system and make especially large sashes possible while at the same time offering protection against warping (bi-metal effect). Since the labyrinth is pre-installed at the sash profiles, a separate fastening is no longer necessary and very slim central joints of only 62 mm face width become possible. As usual, the sashes are mitre-cut. The all-around frame reduces the complexity of the system, leading to simplified production. As an economically attractive solution, the sliding door system heroal S 65 is especially suited for upscale residential and efficient commercial construction.

The sliding door system heroal S 65 was awarded the German Innovation Award 2020 for its particularly efficient production and innovative wing construction.


System dimensions

Profile depth [mm]

Frame profile
154
Leaf profile
65

Visible profile width [mm]

Frame profile
57
Leaf profile
62 - 87

System properties

Glass filling strength [mm]
47
Max. leaf weight [kg]
250
Max. leaf heights [mm]
2.400

Performance characteristics

> 2,4 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
> 1,1 Heat insulation (Uw in W/m2K) / Profile width [mm]
8A Resistance to driving rain
B2 Wind resistance
1 Operating forces
