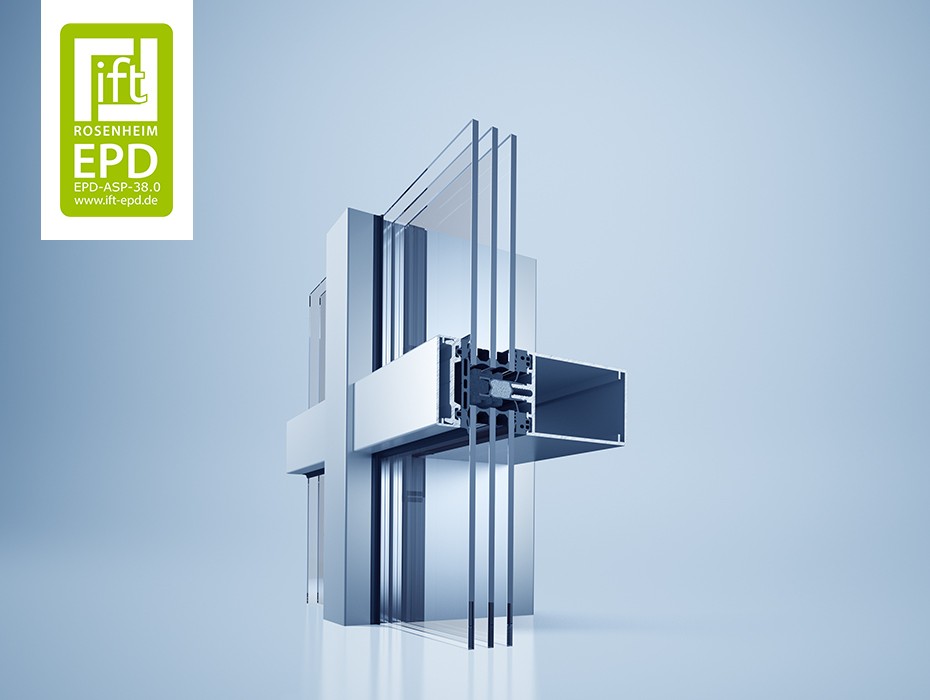

heroal C 50 HI

The highly insulated curtain wall system

The heroal C 50 HI curtain wall system achieves the standard required for a passive house with standard triple-glazed insulating glass. This enables sustainable façade concepts with outstanding energy efficiency. Special details in the construction of the system ensure quick, reliable and economical assembly.

The innovative concept for heat insulation with foam-filled insulators and adapted insulator damping, and the continuous seal characterise this system.


System dimensions

View width [mm]
50
Construction depth [mm]
28 - 260
Transom profile depth [mm]
6 - 215
Glass filling strength [mm]
8 - 68
Max. weight of filling element: [kg]
800

Performance characteristics

> 0,78 Thermal insulation [Uf in W/m2K] / Profile width [mm]
AE* Air permeability
RE 1200 Resistance to driving rain
2 kN/m2 Wind resistance
49 db Soundproofing class
RC 2 Resistance to burglary
I5/E5 Impact resistance

* Air permeability < 0.5 m3/h m at pressure> 600 PA

Extras

Tailored support for architects

In order to ensure all-inclusive support, heroal’s team of consultants offer advice across Germany. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

All information in the heroal Communicator

Our Communicator, heroal’s online workplace, always makes the current documentation available to you. Via the Communicator-App, you can get in touch with your architect’s consultant immediately.

  • Download test documents
  • Find product information
  • Readily available CAD data instantly
  • Download BIM data
  • Latest projects for reference
