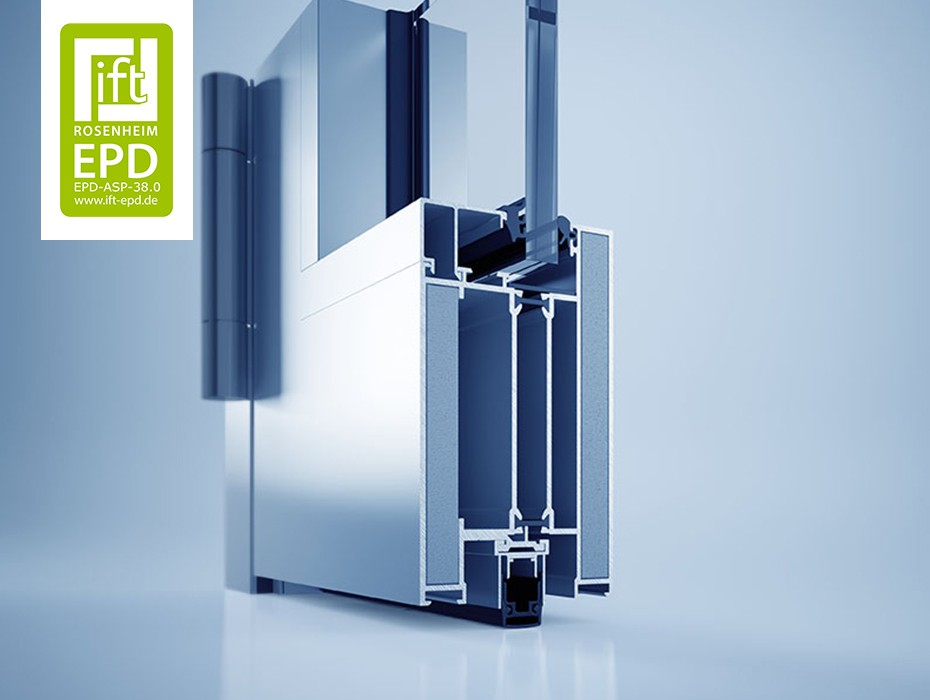

heroal D 82 FP

Ideal system solutions for fire and smoke protection elements

The heroal D 82 FP 5-chamber profile system offers technically sophisticated solutions for fire prevention elements. The separation of cooling zone and functional track which is unique to heroal guarantees lasting application and functional reliability, even with frequent use. As well as national certification, there is also the possibility for certification in Austria, Switzerland and the Netherlands.


System dimensions

Profile depth [mm]

Frame profile
68 - 150
Leaf profile
82
Bar profile
82

Visible profile width [mm]

Frame profile
68 - 150
Leaf profile
95
Bar profile
90 - 100

System properties

Glass filling strength [mm]
49
Max. leaf weight [kg]
250
Max. leaf widths [mm]
1.452
Max. leaf heights [mm]
3.009

Performance characteristics

>3,3 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
3A Resistance to driving rain
C3 Wind resistance
1-3 Soundproofing class
RC 3 Resistance to burglary
2 Operating forces

Extras

Tailored support for architects

In order to ensure all-inclusive support, heroal’s team of consultants offer advice across Germany. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

All information in the heroal Communicator

Our Communicator, heroal’s online workplace, always makes the current documentation available to you. Via the Communicator-App, you can get in touch with your architect’s consultant immediately.

  • Download test documents
  • Find product information
  • Readily available CAD data instantly
  • Download BIM data
  • Latest projects for reference
