heroal D 65

Economical door systems for meeting high demands in terms of operating comfort and burglary resistance

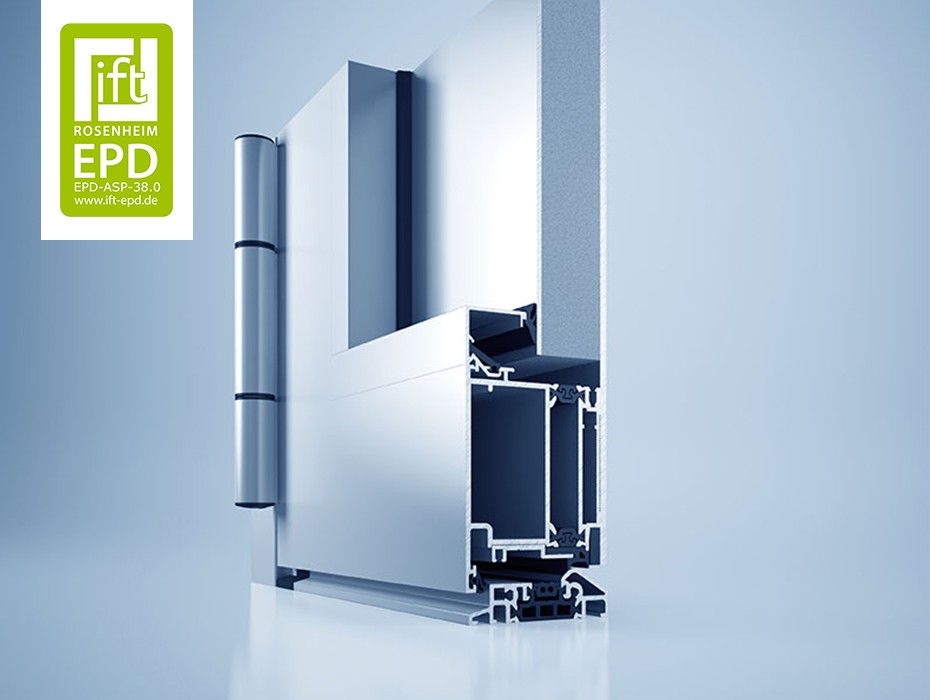

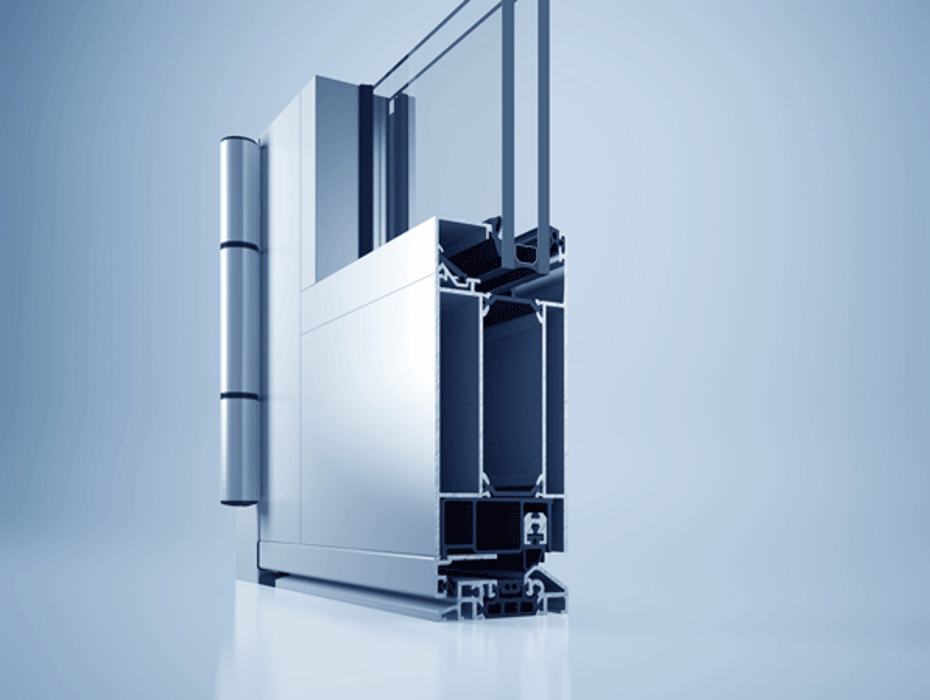

The heroal D 65 door system offers economical solutions for doors that open inwards and outwards, including automatic door systems and emergency exit doors. The 3-chamber profiles provide the best possible system security with the proven system fittings, combined with heroal system components. The heroal D 65 door system meets the highest demands with regard to operating comfort and burglary resistance.


System dimensions

Profile depth [mm]

Frame profile
50 - 250
Leaf profile
65
Bar profile
65

Visible profile width [mm]

Frame profile
50 - 250
Leaf profile
70 - 124
Bar profile
74 - 254

System properties

Glass filling strength [mm]
46
Max. leaf weight [kg]
180
Max. leaf widths [mm]
1.400
Max. leaf heights [mm]
2.500

Performance characteristics

3,2/ 145 Thermal insulation [Uf in W/m2K] / Profile width [mm]
4 Air permeability
> 1,6* Heat insulation (UD in W/m2K) / Profile width [mm]
5A Resistance to driving rain
C5 Wind resistance
1-3 Soundproofing class
RC 3 Resistance to burglary
2 Operating forces
4 Impact resistance
3 Mechanical resistance
Load-bearing capacity of safety equipment
6/8 Continuous function

* UD value according to DIN EN 10077-1, calculated based on element size 1230 x 2180 mm
