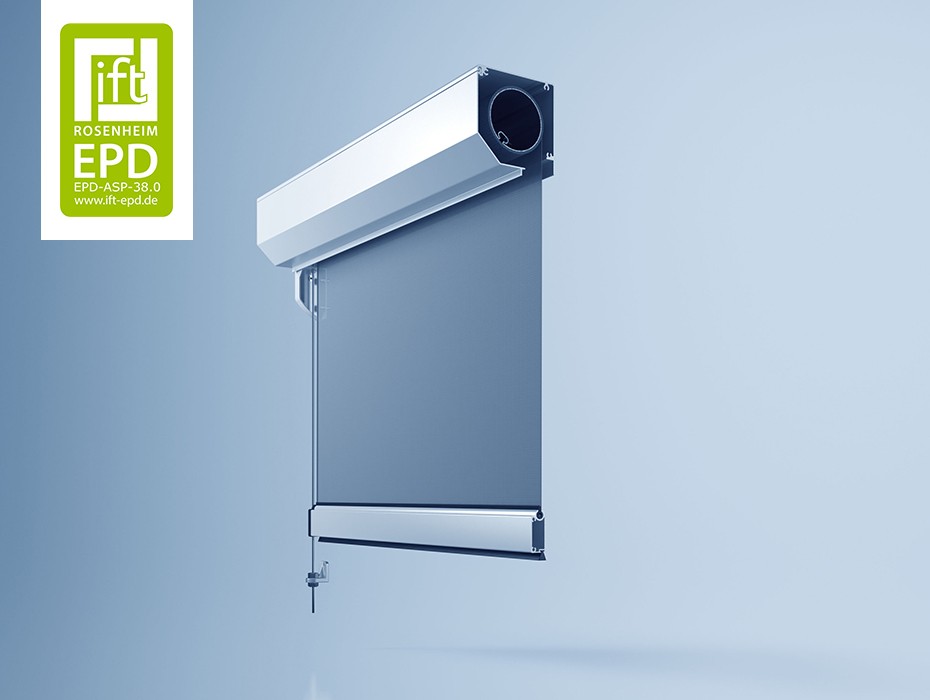

heroal VS C

Textile sun protection system with stainless steel rope guidance

The sun protection system heroal VS C comes with a subtle guidance using stainless steel ropes: This variant is particularly suitable for windows and facades with a slim view width of the profiles. The sleek look of the entire system corresponds to the excellent heroal design language – after all, even the high-quality stainless steel cables impress with their minimalist look. With the heroal VS C, sun radiation can be reduced by up to 98 %*.

* depending on the chosen textile

  • for slim window profiles
  • textiles guided via stainless steel ropes
  • from almost transparent to blackout (up to 98 %)

    Product Details

  • Processing advantages & product details


    Sun protection systems provide for healthy living and working conditions. They create a pleasant room climate on hot days and help to save air conditioning and heating costs, as the heat flow can be individually controlled as needed. Sun protection systems from recycled aluminium and high-quality textiles are resistant to the elements and stand out for their high material stability and extreme durability.

    System compatibility

    A design principle across the range of systems, the utilisation of standardised parts and the well-thought-out design details provide for a very efficient and easy fabrication. Thanks to the almost identical dimensions of standardised parts, inventory cost are kept low. Also, continuous panels for coupled elements reduce the number of parts. Depending on requirements and capacities, the heroal VS can be ordered as cut-to-length product, textile assembly group or finished element (heroal Ready).


    The heroal VS C offers ideal protection from glare, prying eyes, heat and UV radiation. The heroal VS C can be controlled at the push of a button on a remote control, via a manual switch on the wall, or via an app. Also, the textile screen can be integrated into smart home systems. Many different motorisation options ensure an easy planning and installation. This sun protection system with rope guidance is ideally suited for locations where only moderate wind speeds are to be expected.


    The aluminium parts of the heroal VS C are coated with the highly weather-resistant heroal hwr powder coating – for perfect colour uniformity with heroal systems for windows, doors, sliding doors, curtain walls and roofings. The standard portfolio of more than 250 different textiles offers a great freedom of design. Elements up to 5 m high and 5 m wide, with a maximum area of 15 m², can also be created in combination with a small box.

  • Brochures & test certificates

  • Dimensions & drawings


    Box type
    Box shape
    45°, 90°, HC N
    Box size [mm|in]
    85, 95, 105, 125 3.3, 3.7, 4.1, 4.9


    Max. Elementwidth [mm|in]
    5.000 197
    Max. Elementheight [mm|in]
    5.000 197
    Max. area [m2|ft2]
    15 161.46
  • CAD & BIM data

  • Tender texts
