Roller shutter rod heroal RS 53 RC 2

heroal RS 53 RC 2

Security roller shutter slat with high burglary resistance RC 2

TThe extremely bending resistant standard Safe aluminium roller shutter slats with a nominal thickness of 0.55 inch and a heavy-duty 2-component foam are designed for the manufacture of security roller shutters including resistance class RC 2. heroal RS 53 RC 2 also achieves an excellent wind load rating (wind load resistance class 6) with element widths up to 10.5 ft.. In addition, it meets the requirements of hail resistance class 7.

  • RC 2 certified roller shutter slat
  • Enhanced total U-value
  • Highly weather resistance surface coating

    Product Details

  • Processing advantages & product details


    heroal roller shutter slats made of recycled, double-walled aluminium are hail and weather resistant and stand out for their natural protection against corrosion and high material stability. This means that they are not only extremely durable, but also very eco-friendly and sustainable, as they combine a positive impact on the energy efficiency of a building with a very low material input and the use of circular materials.


    The geometry of the roller shutter slats provides for an ideal winding behaviour, so that even large element widths require only small box sizes. Roll-formed aluminium parts, like slats for roller shutters or roller doors, are coated with heroal 2-layer thick coatings, which have even been certified for marine use. This coating is very colourfast and weather resistant. heroal roller shutters slats stand out for their extremely wide variety of colours. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with the extruded parts of the roller shutter and heroal systems for windows, doors, sliding doors, curtain walls and roofings.


    heroal roller shutter systems stand out for their extremely silent, smooth running, even when temperatures are very high. Motors from different producers can be used, so that the operation mode can be flexibly adapted to requirements. The connection to a smart home system is also possible. The tested burglary resistance has proven to significantly enhance security. Depending on capacities, the roller shutter slat system heroal RS 53 RC 2 can be ordered as system items or as finished curtain, with a limited choice of colours.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm|in]
    52 2.0
    Nominal thickness [mm|in]
    14,0 0.55
    Weight [kg/m2| lbs/ft2]
    10,5 2.15
    Max. width [mm|ft]
    5.500 18
    Max. height [mm|ft]
    4.000 13
    Max. area [m2|ft2]
    16,5 177.50

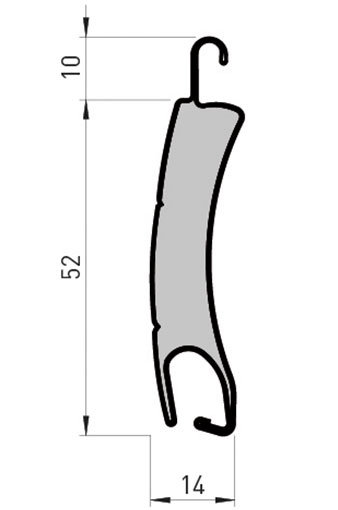

    Sectional drawings

  • Performance characteristics

    RC 2 Resistance to burglary
    7** Hail class
    6* Wind load resistance
  • CAD & BIM data

  • Tender texts
