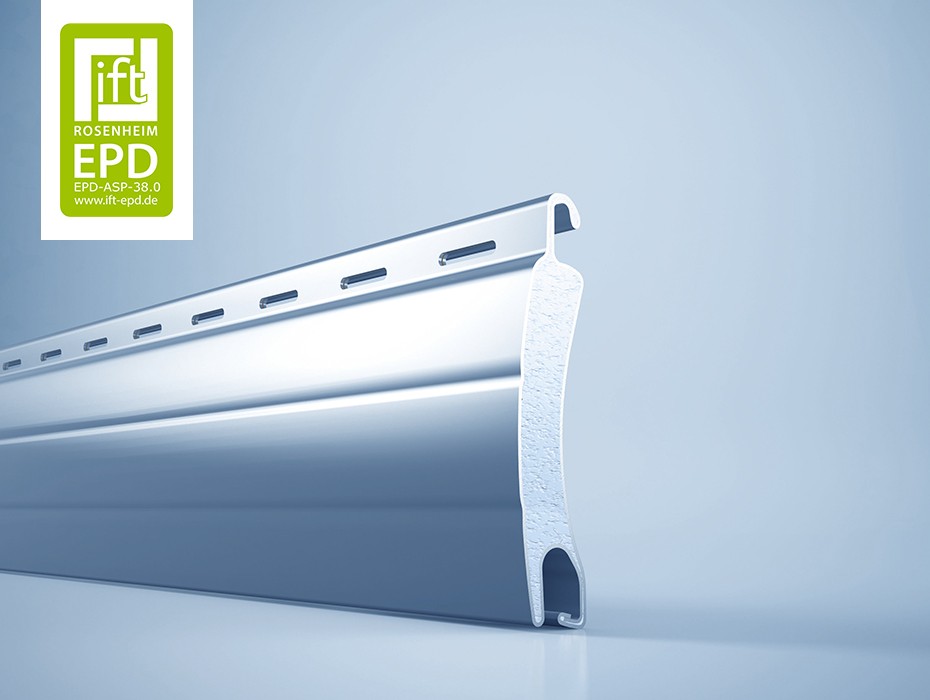

Roller shutter rod heroal RS 37 SL

heroal RS 37 SL

Burglary resistant roller shutter slat with slim coverage width

The excellent material strength turns the heroal RS 37 SL into a high-tensile aluminium roller shutter slat. For element widths up to 3,000 mm, it meets the requirements of wind resistance class 4.

  • Burglar resistant roller shutter slat
  • Enhanced total U-value
  • Highly weather resistance surface coating

    Product Details

  • Processing advantages & product details


    heroal roller shutter slats made of recycled, double-walled aluminium are hail and weather resistant and stand out for their natural protection against corrosion and high material stability. This means that they are not only extremely durable, but also very eco-friendly and sustainable, as they combine a positive impact on the energy efficiency of a building with a very low material input and the use of circular materials.


    Depending on capacities, heroal roller shutter systems can be ordered as system items, finished curtains or finished elements (heroal Ready).


    The geometry of the roller shutter slats provides for an ideal winding behaviour, so that even large element widths require only small box sizes. Roll-formed aluminium parts, like slats for roller shutters or roller doors, are coated with heroal 2-layer thick coatings, which have even been certified for marine use. This coating is very colourfast and weather resistant. heroal roller shutters slats stand out for their extremely wide variety of colours. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with the extruded parts of the roller shutter and heroal systems for windows, doors, sliding doors, curtain walls and roofings.


    heroal roller shutter systems stand out for their extremely silent, smooth running, even when temperatures are very high. Motors from different producers can be used, so that the operation mode can be flexibly adapted to requirements. The connection to a smart home system is also possible. The tested burglary resistance has proven to significantly enhance security. To enhance comfort, insect screens can be directly integrated into the panel box system by means of special guide rails. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm|in]
    37 1.46
    Nominal thickness [mm|in]
    9,5 0.35
    Weight [kg/m2| lbs/ft2]
    5,9 1.21
    Max. width [mm|ft]
    4.000 13
    Max. height [mm|ft]
    4.000 13
    Max. area [m2|ft2]
    9,0 97

    Sectional drawings

  • Performance characteristics

    SL*** Resistance to burglary
    5** Hail class
    0,19 ΔR in accordance with EN 13125:2001
    4* Wind load resistance

    *** SL, the roller shutter slat satisfies technical directive TR 111 from the BVRS (German federal association for manufacturers of roller shutters and sun protection)

  • CAD & BIM data

  • Tender texts
