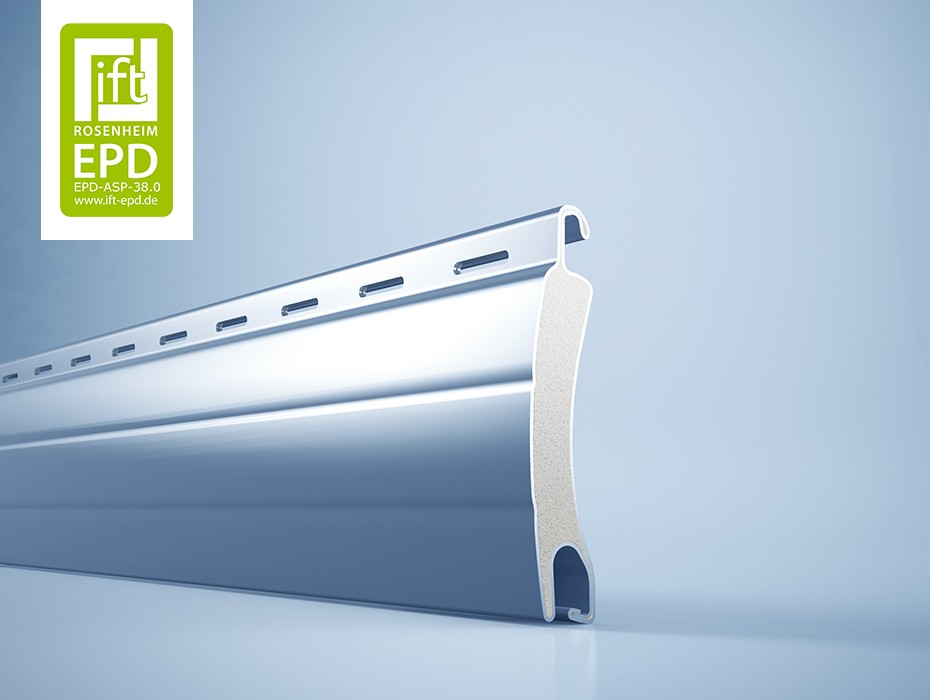

heroal RS 37 RC 2

RC 2 Security Roller Shutter Slat with Burglary Resistance

The high density foam filling gives the elegant heroal RS 37 RC 2 slat, which weighs 1.64 lb/sq ft, its excellent bending strength and stability. With a coverage width of 1.46 inch and a nominal thickness of 0.37 inch the slat is tested and approved up to resistance class RC 2 in accordance with DIN 1627. The heroal RS 37 RC 2 has also been awarded hail class 7.

Design Options

  • Potential total U factor value improvement of up to 41 percent
  • Highly weather-resistant surface with 2-layer thick coating


Cross section

System dimensions

Coverage width [mm|in]
37 1.46
Nominal thickness [mm|in]
9,5 0.37
Weight [kg/m2| lbs/ft2]
8,0 1.64
Max. width [mm|ft]
4.200 13.75
Max. height [mm|ft]
4.000 13
Max. area [m2|ft2]
10,5 113

Performance characteristics

ΔR in accordance with EN 13125:2001
4* Wind load resistance
RC 2 Resistance to burglary
7** Hail class

* with 8.85 ft element width and a guide with 1 inch immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
