heroal RS 38

The Roller Shutter for High Wind Loads

The heroal RS 38 is a safe roller shutter solution particularly for regions with high wind loads. Excellent wind load values – resistance class 4 for element widths up to 8.5 ft – are the result of the high stability of this roller shutter slat.

Design Options

  • Potential total U factor value improvement of up to 42 percent
  • Highly weather-resistant surface with 2-layer thick coating
  • Wide selection of colors

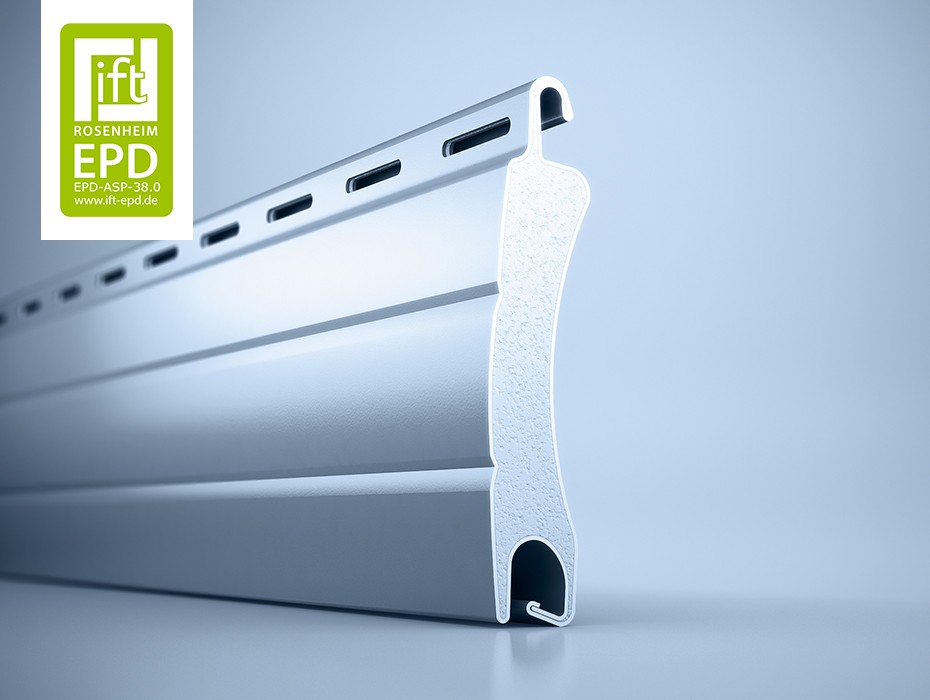

Cross section

System dimensions

Coverage width [mm|in]
38 1.5
Nominal thickness [mm|in]
9,0 0.35
Weight [kg/m2| lbs/ft2]
4,5 0.92
Max. width [mm|ft]
3.700 12
Max. height [mm|ft]
3.800 12.50
Max. area [m2|ft2]
8,0 86

Performance characteristics

0,19 ΔR in accordance with EN 13125:2001
3* Wind load resistance
Resistance to burglary
4** Hail class

* with 8.85 ft element width and a guide with 1 inch immersion depth

** acc. VKF (Swiss Association of Cantonal Fire Insurance Companies) Test Specifications No. 02. The value reflects the mechanical functional capability.
