Roller shutter cover heroal FME 20°
Use of heroal FME 20° with heroal VS Z sun shading system

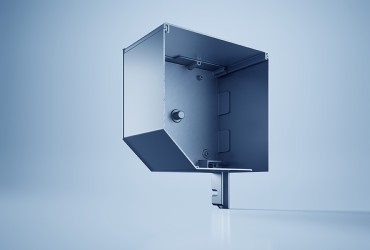

heroal FME 20°

Extruded surface-mounted roller shutter box with 20° chamfer

In addition to its elegant look, the extruded chamfered variant heroal FME 20° offers more stability and security: The tried and tested surface-mounted element stands out for the versatile installation options of the boxes in six different sizes. If required, the front panel can be removed completely, providing for a large inspection opening.

  • Surface-mounted box ideally suited for a retrofit
  • Extruded and extremely robust for increased burglary protection
  • Wde variety of colours and designs

    Product Details

  • Processing advantages & product details


    The heroal FME 20°, made from recycled aluminium, stands out for its high material stability. It provides for perfect security thanks to walls made from high-quality aluminium alloys, and the use of the special heroal connection technology.


    The highly weather resistant heroal hwr powder coating provides for a perfect colour uniformity with heroal systems for windows, doors, sliding doors, curtain walls and roofings. In addition to more than 500 RAL, DB and VEKA colours, it is also available in the exclusive Les Couleurs® Le Corbusier shades. Different gloss levels and structures perfectly accentuate surfaces coated in RAL colours. With the innovative surface refinement heroal SD, the surfaces of extruded parts are given impressive wood, rust or concrete looks. Reflective metallic looks can be created with Eloxal coatings.


    Special guide rails provide for the integration of insect screens into the panel box system. The available space is perfectly used, and any additional installation effort for screens is eliminated.

  • Brochures & test certificates

  • Dimensions & drawings

    Number of panel parts
    Number of box sizes
    Sizes from - to [mm|in]
    125 - 205 5" - 8"

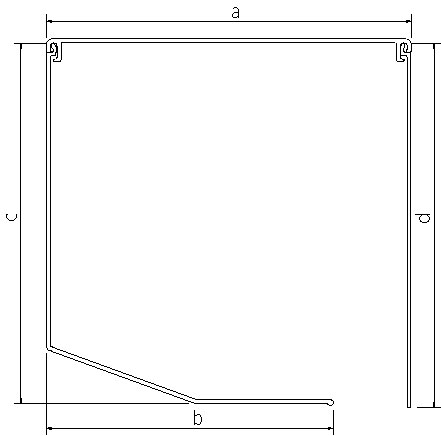

    Sectional drawings

  • Performance characteristics

    SL*** Resistance to burglary
    7** Hail class

    *** SL, the roller shutter slat satisfies technical directive TR 111 from the BVRS (German federal association for manufacturers of roller shutters and sun protection)

  • CAD & BIM data

  • Tender texts
