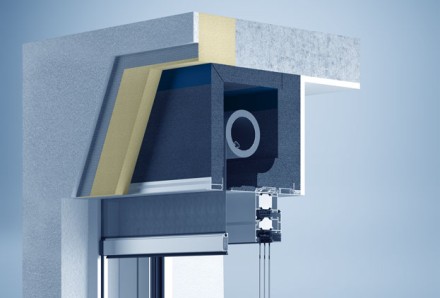

heroal IB Unique

Insulation box systems

The heroal IB Unique insulation box system is unique in function, processing and logistics thanks to its Super Z folding installation technology: It combines the best insulation values on a flexible platform with quick, easy installation and space-optimised, secure transport as well as space-saving, stable storage.

heroal IB Unique is available in three standard sizes:

  • Size S: 265 x 265 mm
  • Size M: 300 x 305 mm
  • Size L: 300 x 365 mm

(Measurements are height x depth)

Styrofoam or a sophisticated Styrofoam-Neopor material combination ensure optimum insulation values for heroal IB Unique. Usb values up to 0.41 W/m2K are achieved, which can be further improved in the platform with additional modules. The variants U (boxes made entirely of EPS 035 = Styrofoam) and U DLX (boxes are a combination of EPS 035 + 032 = Styrofoam + Neopor) are available.

The heroal IB Unique is combinable with the heroal roller shutter and sun protection systems, as well as integrated insect screens. In addition, the insulation box system can be installed on all standard window and door systems with installation depths of 65 to 92 mm. Even special applications, such as lifting/sliding systems, are covered.

heroal IB Unique - brochure 2.41 MB System request >
